Heavy-Duty Material Handling Electromagnet
Heavy-Duty Material Handling Electromagnet
SKU:MHE-470eb2
Efficiently handle medium gauge sheet metal and plate with the robust Heavy-Duty MHE Electromagnet - perfect for stacking applications.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Heavy-Duty Material Handling Electromagnet
$1,899.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Material Handling Electromagnet
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

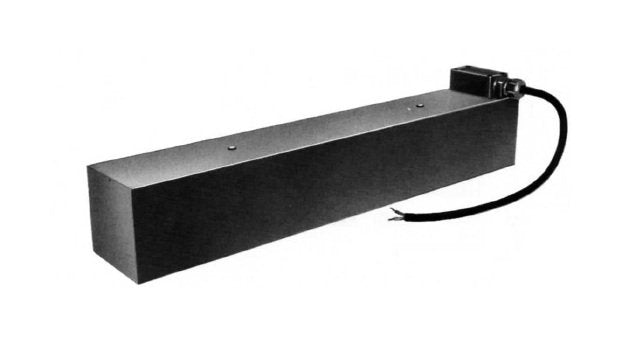

The Heavy-Duty Material Handling Electromagnet (MHE) is engineered for efficient handling of medium gauge sheet metal and plate. With a robust 3-pole design, it offers exceptional holding power across its length, making it ideal for stacking and de-stacking applications. Featuring a capacity of 9100 lb and a power of 353 W, this electromagnet is equipped with replaceable Pole Shoes and stainless steel coil covers. It can be paired with various Rectifier-Controllers for manual or automated operations. For precise material handling, consider the Heavy-Duty MHE Electromagnet as your reliable solution.
Product Specifications
Additional Information 0
"MHE" Electromagnets are of a heavy-duty construction and are provided with mounting holes, wiring box, replaceable "Pole Shoes", & stainless steel coil covers. Standard voltage is 110 VDC (220 VDC optional). Can be used with "AU" Series (automation compatible), or "MA" - "MR" Series (manual operation) Rectifier-Controllers.Information required to Select Proper ElectromagnetsRange of length, width and thickness of material to be handledType of materialSurface condition of materialMaterial temperatureLift multiple plates or one at a time off stackManual or automated applicationComplete description of operating sequence including drawings, sketches, photographs or video tapesOperating environment
Manufacturing Notes 0
Capacity - Capacity ratings shown include 2:1 safety factor. Ratings based on 3/4 in. flat, clean, low carbon steel. Lighter gauge materials must be de-rated.
Specifications Capacity
9100 lb

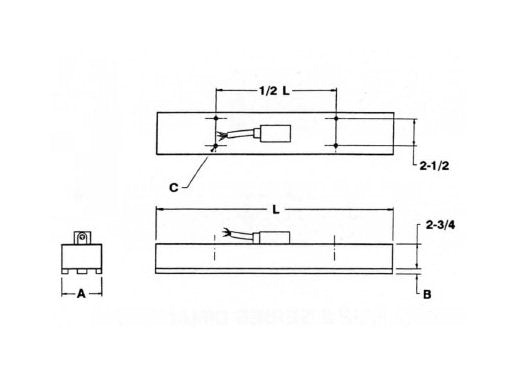

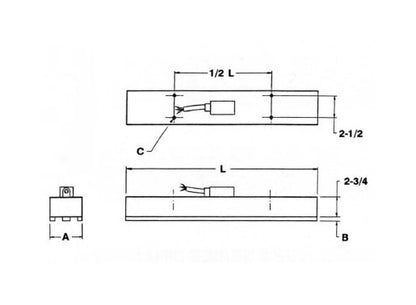

Specifications Dimension A
4 1/2 in
Specifications Dimension B
.750 in
Specifications Dimension C
1/2-13
Specifications Dimension L
60 in
Specifications Optional Dc Voltage Ratings
220 V
Specifications Power
353 W
Specifications Standard Dc Voltage
110 V
Specifications Weight
150 lb
