Heavy-Duty Material Handling Electromagnet
Heavy-Duty Material Handling Electromagnet
SKU:MHE-2487ba
Efficiently lift medium gauge sheet metal with the powerful Heavy-Duty Electromagnet. Ideal for handling layers of parts, it offers superior holding power and robust construction for reliable performance.
Regular price
$1,799.99
Regular price
Sale price
$1,799.99
Unit price
per
Initiate Order
Heavy-Duty Material Handling Electromagnet
$1,799.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Material Handling Electromagnet
$1,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

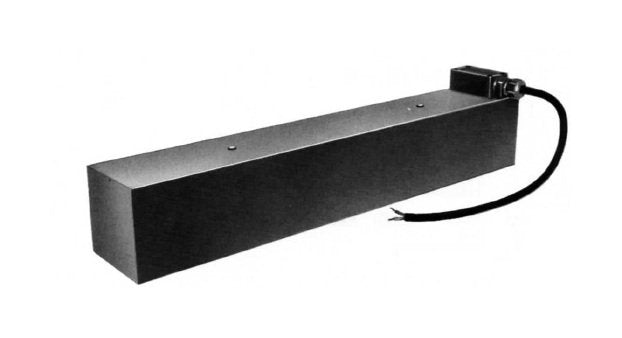

The Heavy-Duty Material Handling Electromagnet is a powerhouse for lifting medium gauge sheet metal and plate efficiently. Equipped with a 3 pole design, it ensures superior holding power across the entire magnet length, making it ideal for handling layers of parts like rods and bars. This electromagnet, with a capacity of 7600 lb, comes with a robust construction, mounting holes, wiring box, replaceable Pole Shoes, and stainless steel coil covers. It operates at a standard DC voltage of 110 V (220 V optional) and can be used in manual or automated applications. The electromagnet is designed to meet rigorous industry standards, ensuring reliability and performance in various material handling tasks.
Product Specifications
Additional Information 0
"MHE" Electromagnets are of a heavy-duty construction and are provided with mounting holes, wiring box, replaceable "Pole Shoes", & stainless steel coil covers. Standard voltage is 110 VDC (220 VDC optional). Can be used with "AU" Series (automation compatible), or "MA" - "MR" Series (manual operation) Rectifier-Controllers.Information required to Select Proper ElectromagnetsRange of length, width and thickness of material to be handledType of materialSurface condition of materialMaterial temperatureLift multiple plates or one at a time off stackManual or automated applicationComplete description of operating sequence including drawings, sketches, photographs or video tapesOperating environment
Manufacturing Notes 0
Capacity - Capacity ratings shown include 2:1 safety factor. Ratings based on 3/4 in. flat, clean, low carbon steel. Lighter gauge materials must be de-rated.

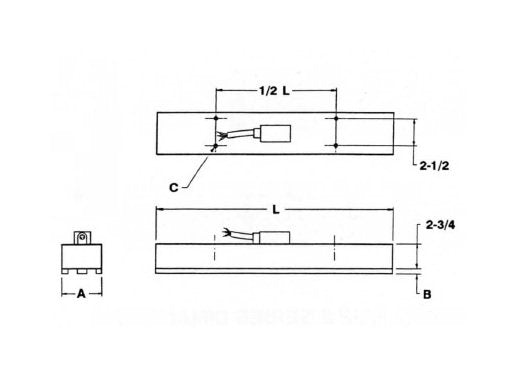

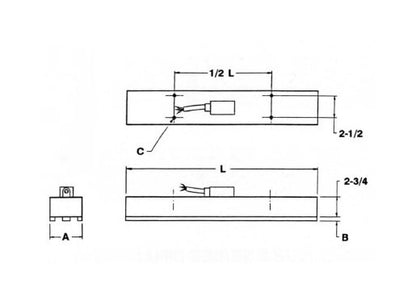

Specifications Capacity
7600 lb
Specifications Dimension A
4 1/2 in
Specifications Dimension B
.750 in
Specifications Dimension C
1/2-13
Specifications Dimension L
56 in
Specifications Optional Dc Voltage Ratings
220 V
Specifications Power
348 W
Specifications Standard Dc Voltage
110 V
Specifications Weight
140 lb
