Heavy-Duty Material Handling Electromagnet for Efficient Lifting
Heavy-Duty Material Handling Electromagnet for Efficient Lifting
SKU:MHE-c30952
Efficiently lift heavy materials with the Heavy-Duty Material Handling Electromagnet. Ideal for medium gauge sheet metal & plate materials.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Heavy-Duty Material Handling Electromagnet for Efficient Lifting
$899.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Material Handling Electromagnet for Efficient Lifting
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

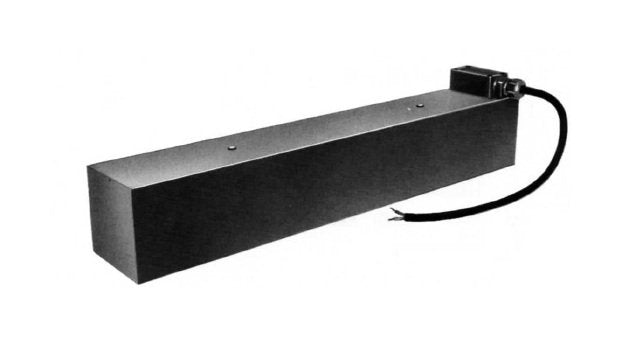

The Heavy-Duty Material Handling Electromagnet (MHE) is a reliable solution for lifting medium gauge sheet metal and plate materials. With its innovative 3 pole design, this electromagnet offers superior holding power across its entire length, making it ideal for handling layers of parts like rods or bars in stacking and de-stacking applications. The MHE electromagnet can lift up to 3900 lb with a power consumption of 174 W, ensuring efficient operations. It comes with mounting holes, wiring box, replaceable Pole Shoes, and stainless steel coil covers for durability. The standard DC voltage of 110 VDC (220 VDC optional) makes it versatile for various applications.
Product Specifications
Additional Information 0
"MHE" Electromagnets are of a heavy-duty construction and are provided with mounting holes, wiring box, replaceable "Pole Shoes", & stainless steel coil covers. Standard voltage is 110 VDC (220 VDC optional). Can be used with "AU" Series (automation compatible), or "MA" - "MR" Series (manual operation) Rectifier-Controllers.Information required to Select Proper ElectromagnetsRange of length, width and thickness of material to be handledType of materialSurface condition of materialMaterial temperatureLift multiple plates or one at a time off stackManual or automated applicationComplete description of operating sequence including drawings, sketches, photographs or video tapesOperating environment
Manufacturing Notes 0
Capacity - Capacity ratings shown include 2:1 safety factor. Ratings based on 3/4 in. flat, clean, low carbon steel. Lighter gauge materials must be de-rated.
Specifications Capacity
3900 lb

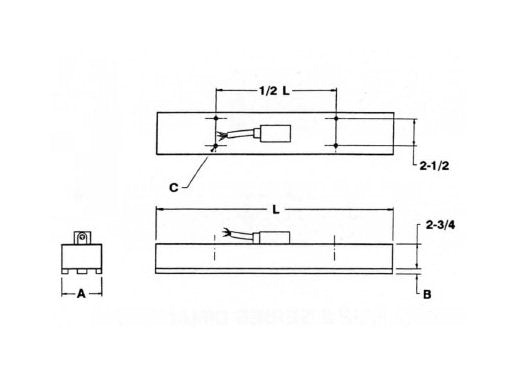

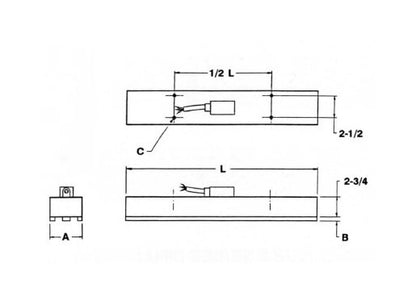

Specifications Dimension A
4 1/4 in
Specifications Dimension B
.500 in
Specifications Dimension C
3/8-16
Specifications Dimension L
28 in
Specifications Optional Dc Voltage Ratings
220 V
Specifications Power
174 W
Specifications Standard Dc Voltage
110 V
Specifications Weight
65 lb
