Heavy-Duty Mechanical Power Take-Off Clutches
Heavy-Duty Mechanical Power Take-Off Clutches
SKU:CLU-678a70
Enhanced Mechanical Power Take-Off Clutches for superior reliability and durability. Advanced design with heavy-duty features.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Heavy-Duty Mechanical Power Take-Off Clutches
$1,899.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Mechanical Power Take-Off Clutches
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unmatched reliability with our Mechanical Power Take-Off Clutches featuring advanced design and superior performance. Our clutches include a heavy-duty Fuller 'Solo' truck clutch, preventing torsional vibrations and ensuring durability. The rugged cylindrical roller bearing system of the Side Load version provides 100% external support, minimizing side loads that could damage engine components. With torque capacities up to 420 HP @ 2100 RPM, these clutches guarantee easy engagement, precise alignment, and long-lasting performance.
Product Specifications
Design Features 0

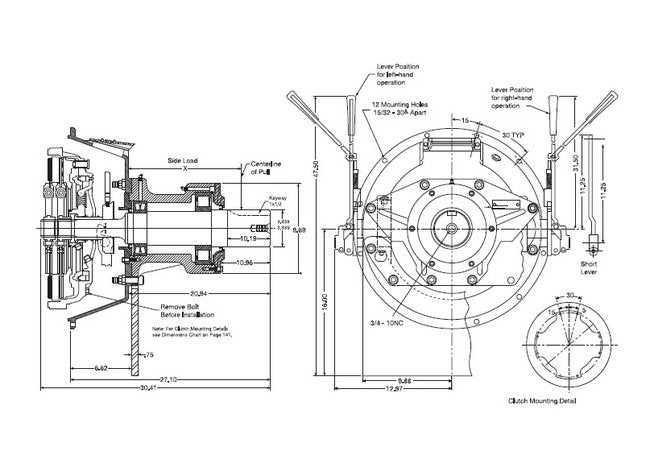

Side Load version incorporates a rugged cylindrical roller bearing system which eliminates trouble-prone pilot bearings. Provides 100% external support of take-off shaft. Prevents transmission of side loads that fatigue or even damage the engine crankshaft.Precise alignment capabilities of the bearing system ensure flywheel/clutch concentricity to minimize effects of diesel engine torsional vibration.Performance-proven Fuller Solo Spring clutch provides easy engagement. Axial load is provided by three pairs of springs placed at an angle to the clutch centerline, reducing required axial force as the clutch is disengaged. The discs are raced with trapezoidal ceramic buttons, and are dampened with an assembly of coaxial springs mounted in the disc hub.Dampened clutch discs prevent torsional vibrations from damaging engine or components.Available in 2 sizes, from 14" to 15 1/2" for engines up to 420 HP @ 2100 RPM.
General Description 0
Two mechanically activated PTO's are now available in addition to the performance-proven Air Tube Disc Clutch PTO's. Complete clutch engagement of the mechanical PTO units is assured with each release of the hand lever due to the incorporation of a heavy-duty Fuller® "Solo" truck clutch. With its many outstanding features, the Fuller clutch used in the Wichita PTO prevents torsional vibration from damaging engine or transmission components, or causing spline wear. The result is superior Power Take-Off performance and durability!
Note 0
Nominal diameter only, clutch is not piloted.
Specifications Actuation
Mechanical
Specifications Bolt Hole Diameter E
15/32 in
Specifications Clutch Size
15-1/2" Flat
Specifications Dimension D
0.19 in
Specifications Flywheel Bore Opening
8.5 in | 21.6 cm
Specifications Flywheel Type
18" Industrial
Specifications Hole Circle B
16.625 in
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Slip
3 sec
Specifications Maximum Speed
2100 rpm
Specifications Number Of Bolt Holes E
8
Specifications Number Of Splines Quantity
10 in
Specifications Pilot A 0000 0002
17.155 in
Specifications Plate Diameter C
15.22 in
Specifications Sae Bell Housing
0
Specifications Spline Diameter
2 in
Specifications Torque
19800 lb·in | 2237 Nm
Specifications Type
Side Load
Applications 0
The In-line PTO design provides direct drive operation with side load capability. It has an automatic self-adjusting feature and does not require a pilot bearing. Other features such as standard SAE flywheel mounting, interchangeable clutch and clutch housing, constant plate load and easy maintenance add up to superior performance.Side Load PTOâs utilize a pair of heavy-duty roller bearings fitted in to the shaft housing. The bearing support system eliminates the transmission of side loads that could reduce durability or even damage the engineâs crank -shaft. Its torque capacities range up to 420 HP @ 2100 RPM.Air-Tube Disc Power Take-Off Clutches provide dependable trouble-free performance on indirect drives with large over hung loads on engines of 250-700 HP. The Wichita design isolates the side load from the engineâs crankshaft for long service life. Simple air controls can be utilized to remotely control the clutch as well as the throttle. Wichita PTOâs have been successfully used for oil field, construction and marine applications.
