Heavy-Duty Mechanical PTO Clutches
Heavy-Duty Mechanical PTO Clutches
SKU:CLU-5d6993
Upgrade industrial machinery with our Heavy-Duty Mechanical PTO Clutches for superior performance and durability.
Regular price
$1,099.99
Regular price
Sale price
$1,099.99
Unit price
per
Initiate Order
Heavy-Duty Mechanical PTO Clutches
$1,099.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Mechanical PTO Clutches
$1,099.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your industrial machinery with our Heavy-Duty Mechanical PTO Clutches by Wichita Clutch. These reliable power take-off units feature a robust design with a Fuller Solo Spring clutch to ensure complete clutch engagement. The incorporation of trapezoidal ceramic buttons and dampened clutch discs prevents torsional vibrations, offering superior performance and durability. Available in two sizes, these clutches can handle engines up to 420 HP @ 2100 RPM, making them ideal for oil field, construction, and marine applications.
Product Specifications
Design Features 0

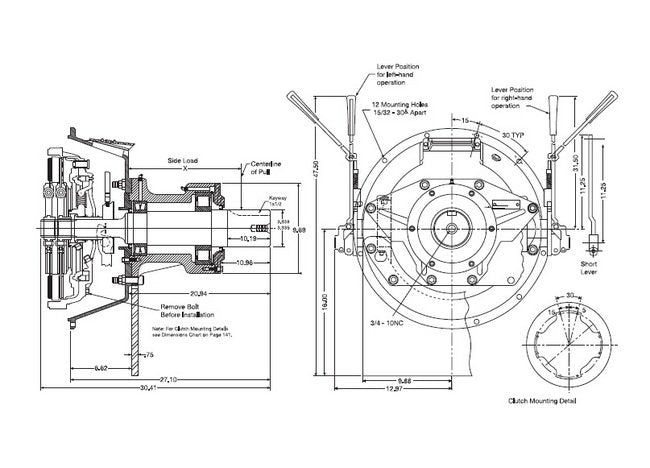

Side Load version incorporates a rugged cylindrical roller bearing system which eliminates trouble-prone pilot bearings. Provides 100% external support of take-off shaft. Prevents transmission of side loads that fatigue or even damage the engine crankshaft.Precise alignment capabilities of the bearing system ensure flywheel/clutch concentricity to minimize effects of diesel engine torsional vibration.Performance-proven Fuller Solo Spring clutch provides easy engagement. Axial load is provided by three pairs of springs placed at an angle to the clutch centerline, reducing required axial force as the clutch is disengaged. The discs are raced with trapezoidal ceramic buttons, and are dampened with an assembly of coaxial springs mounted in the disc hub.Dampened clutch discs prevent torsional vibrations from damaging engine or components.Available in 2 sizes, from 14" to 15 1/2" for engines up to 420 HP @ 2100 RPM.
General Description 0
Two mechanically activated PTO's are now available in addition to the performance-proven Air Tube Disc Clutch PTO's. Complete clutch engagement of the mechanical PTO units is assured with each release of the hand lever due to the incorporation of a heavy-duty Fuller® "Solo" truck clutch. With its many outstanding features, the Fuller clutch used in the Wichita PTO prevents torsional vibration from damaging engine or transmission components, or causing spline wear. The result is superior Power Take-Off performance and durability!
Note 0
Alternately referred to as a "Vehicular" flywheel.
Specifications Actuation
Mechanical
Specifications Bolt Hole Diameter E
13/32 in
Specifications Clutch Size
14" Pot
Specifications Dimension D
2.94 in
Specifications Flywheel Bore Opening
7 in | 17.8 cm
Specifications Flywheel Type
Truck
Specifications Hole Circle B
15.500 in
Specifications Manufacturer
Wichita Clutch
Specifications Maximum Slip
3 sec
Specifications Maximum Speed
2100 rpm
Specifications Number Of Bolt Holes E
8
Specifications Number Of Splines Quantity
10 in
Specifications Pilot A 0000 0002
14.750 in
Specifications Plate Diameter C
13.75 in
Specifications Sae Bell Housing
2
Specifications Spline Diameter
2 in
Specifications Torque
16800 lb·in | 1898 Nm
Specifications Type
Inline
Applications 0
The In-line PTO design provides direct drive operation with side load capability. It has an automatic self-adjusting feature and does not require a pilot bearing. Other features such as standard SAE flywheel mounting, interchangeable clutch and clutch housing, constant plate load and easy maintenance add up to superior performance.Side Load PTOâs utilize a pair of heavy-duty roller bearings fitted in to the shaft housing. The bearing support system eliminates the transmission of side loads that could reduce durability or even damage the engineâs crank -shaft. Its torque capacities range up to 420 HP @ 2100 RPM.Air-Tube Disc Power Take-Off Clutches provide dependable trouble-free performance on indirect drives with large over hung loads on engines of 250-700 HP. The Wichita design isolates the side load from the engineâs crankshaft for long service life. Simple air controls can be utilized to remotely control the clutch as well as the throttle. Wichita PTOâs have been successfully used for oil field, construction and marine applications.
