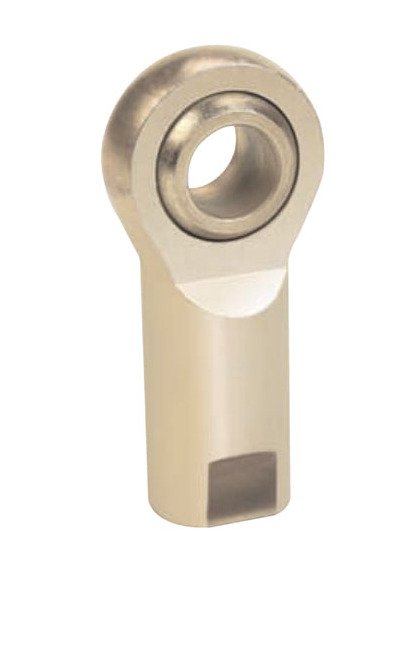

Heavy-Duty Metal to Metal Rod End

Heavy-Duty Metal to Metal Rod End

SKU:PUS-6fedc3

Reliable heavy-duty rod end for high axial load applications, meets SAE J1120 standards.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Heavy-Duty Metal to Metal Rod End

Heavy-Duty Metal to Metal Rod End

$29.99

Quantity: 1

Claim Your Seller Account

Heavy-Duty Metal to Metal Rod End

Heavy-Duty Metal to Metal Rod End

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy-Duty Metal to Metal Rod End, part of our EM/EF Rod Ends product line, is a durable and economical solution designed for applications requiring high axial load and critical side loading strength. With a ball bore of 0.3750", ball width of 0.500", and a variety of dimensions meeting stringent specifications, this rod end offers reliability in a wide temperature range from -65 to 250 °F. Suitable for various mechanical motion transfer devices in industries like construction, lawn and garden, and truck/bus sectors, it complies with SAE spec J1120 for quality assurance and performance excellence.

Product Specifications

Applications 0
Numerous mechanical motion transfer devices/applications, including:Construction equipmentLawn and gardenTruck/bus
Features 0
2-piece metal to metal design offers our most economical optionSuited for higher axial load where side loading strength is criticalCan be used in a wide range of temperatures: -65 ºF - 250 ºF(-54 ºC - 121 ºC)Offered in studded and right or left-handed versionsCustom assemblies can be built to your specificationsMeets SAE spec J1120
Material 0
Ball - Low Carbon Steel, Case Hardened Zinc Plated, Yellow Dichromate TreatedBody - Low Carbon Steel Zinc Plated, Yellow Dichromate Treated

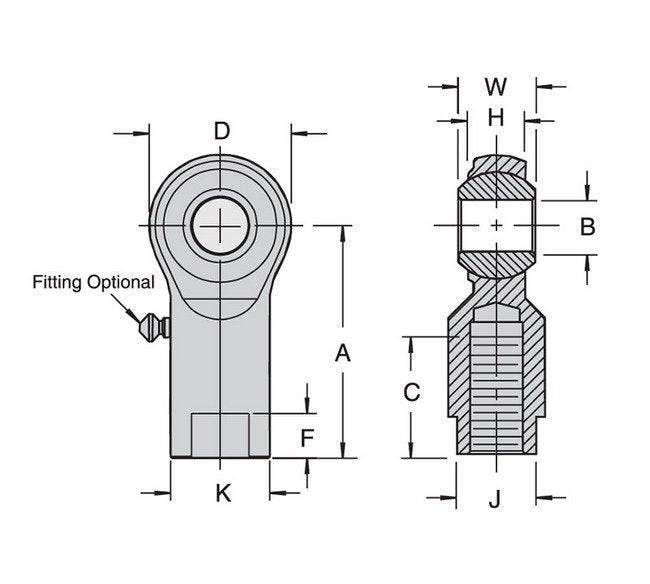

Specifications Ball Bore B 00020 00000
0.3750 "
Specifications Ball Diameter Ref
0.687 "
Specifications Ball Width W 0005
0.500 "
Specifications Centerline Length A 0015
1.625 "
Specifications Head Diameter D 0015
1.000 "
Specifications Housing Width H Ref
0.406 "
Specifications Note
For standard lubrication fitting, add "Z" to suffix. Example: EM10ZZerks not available on 3/8" or 10 mm and smaller rod ends.This series is also available in a studded configuration. Specify by adding "S" to suffix. Example: EM10S
Specifications Shank Diameter K 0015
0.687 "
Specifications Temperature Range
-65 to 250 ºF | -54 to 121 ºC
Specifications Thread Length C 0060
0.812 "
Specifications Thread Size Unf 2b
3/8-24 "
Specifications Type
Female
Specifications Ultimate Radial Static Load Capacity
5520 lb
Specifications Weight
0.152 lb
Specifications Wrench Flat Length F 0030
0.312 "
Specifications Wrench Flat Width J 0015
0.562 "
Studded Dimensions L Ref
0.625 "
Studded Dimensions Min Thread Length S
0.781 "
Studded Dimensions P 0030
0.875 "
Studded Dimensions Rod End Bore Size
3/8 "
Studded Dimensions Thread Size N Unf 2a
3/8-24 "
CAGE
0T9L4
NAICS
332510
PSC
4030
