Heavy Duty Metric Female Non Return Valve
Heavy Duty Metric Female Non Return Valve
SKU:FIT-6aea81
Heavy Duty Non Return Valve for hydraulic systems, 250 bar pressure, carbon steel construction. Ideal for institutions.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Heavy Duty Metric Female Non Return Valve
$49.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Metric Female Non Return Valve
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

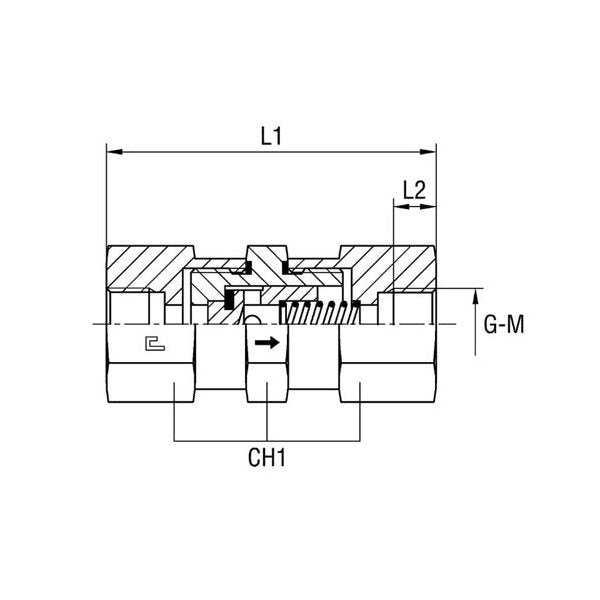

The Heavy Duty Metric Female Non Return Valve is a reliable hydraulic check valve designed for high-pressure applications with a nominal operating pressure of 250 bar. Crafted from carbon steel, this valve ensures durability and long-lasting performance. With a precise M - Thread Size of 33x2 and dimensions of L1: 122 mm, L2: 21.0 mm, and CH1: 50 mm, this valve offers efficient flow control and prevents backflow. It complies with industry standards for quality and is ideal for institutional and government procurement needs.
Product Specifications
Specifications Ch1
50 mm
Specifications Diameter Pass
18 mm
Specifications L1
122 mm
Specifications L2
21.0 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
33x2
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Heavy Duty
