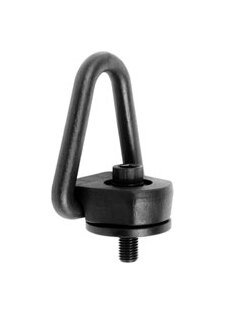

Heavy Duty Metric Side Pull Hoist Ring
Heavy Duty Metric Side Pull Hoist Ring
SKU:HOI-86f13f
Versatile Heavy Duty Metric Side Pull Hoist Ring engineered for industrial lifting tasks with 360° rotation and 9259 lbs load capacity.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Heavy Duty Metric Side Pull Hoist Ring
$129.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Metric Side Pull Hoist Ring
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Metric Side Pull Hoist Ring is a robust and versatile industrial tool essential for lifting applications. Crafted from high-quality alloy steel with a durable black oxide finish, this hoist ring is engineered to rotate 360°, providing self-alignment in the direction of the load. With a pivot angle of 90° and a load rating of 9259 pounds (4200 kg), this hoist ring offers exceptional strength and stability. Designed as a one-piece unit to prevent part loss, it features a secure M24x3 thread size with an inside clearance of 79.00mm, ensuring reliable performance in various lifting tasks. Compliant with rigorous safety standards, including magnetic particle inspection, this Heavy Duty Metric Side Pull Hoist Ring is a dependable choice for industrial and institutional lifting needs.
Product Specifications
Specifications A Radius
22.00 mm
Specifications B Base Height
61.00 mm
Specifications D Diameter
19.00 mm
Specifications E Thread Length
43.00 mm
Specifications Finish
Black Oxide
Specifications F Height
159.00 mm
Specifications G Thread Size
M24x3
Specifications H1 Inside Clearance
106.00 mm
Specifications H Inside Clearance
79.00 mm
Specifications I Overall Width
133.00 mm
Specifications J Base Width
79.00 mm
Specifications Material
Alloy Steel
Specifications Pivot
90 º
Specifications Ps Load Rated
9259 Pounds (4200 kg)
Specifications Swivel
360 º
Specifications Torque
311.00 N·m
Specifications V Center Line 1
41.00 mm
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
2.78 kg
Specifications W Center Line 2
171.00 mm
