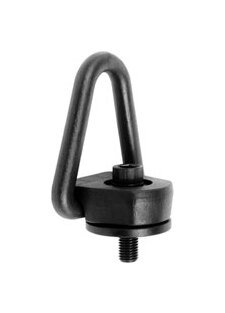

Heavy Duty Metric Side Pull Hoist Ring
Heavy Duty Metric Side Pull Hoist Ring
SKU:HOI-50cc50
Discover reliability and performance with our Heavy Duty Metric Side Pull Hoist Ring. Engineered to strict standards with 360° swivel rotation and self-aligning properties.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Heavy Duty Metric Side Pull Hoist Ring
$89.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Metric Side Pull Hoist Ring
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Metric Side Pull Hoist Ring is a top-of-the-line industrial solution engineered to the most stringent standards. Made of high-grade alloy steel with a durable black oxide finish, this hoist ring ensures reliability and performance. With features like 360° swivel rotation, self-aligning capabilities, and magnetic particle inspection for quality assurance, this hoist ring is designed to handle heavy loads with ease. Its precise specifications, including a load rating of 2315 pounds, make it ideal for demanding applications where safety and efficiency are paramount.
Product Specifications
Specifications A Radius
19.00 mm
Specifications B Base Height
38.00 mm
Specifications D Diameter
13.00 mm
Specifications E Thread Length
37.00 mm
Specifications Finish
Black Oxide
Specifications F Height
120.00 mm
Specifications G Thread Size
M12x1.75
Specifications H1 Inside Clearance
81.00 mm
Specifications H Inside Clearance
69.00 mm
Specifications I Overall Width
99.00 mm
Specifications J Base Width
56.00 mm
Specifications Material
Alloy Steel
Specifications Pivot
90 º
Specifications Ps Load Rated
2315 Pounds (1050 kg)
Specifications Swivel
360 º
Specifications Torque
37.00 N·m
Specifications V Center Line 1
32.00 mm
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
0.96 kg
Specifications W Center Line 2
130.00 mm
