Heavy-Duty Mini-Cat Rewinder with Variable Core Diameter
Heavy-Duty Mini-Cat Rewinder with Variable Core Diameter
SKU:MIN-2fad2f
Enhance label winding efficiency with the Heavy-Duty Mini-Cat Rewinder - perfect for continuous 24/7 operation.
Regular price
$649.99
Regular price
Sale price
$649.99
Unit price
per
Initiate Order
Heavy-Duty Mini-Cat Rewinder with Variable Core Diameter
$649.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Mini-Cat Rewinder with Variable Core Diameter
$649.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

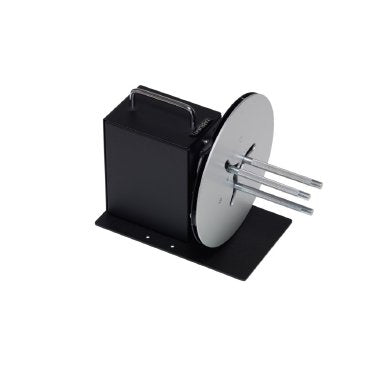

Upgrade your label winding process with the Heavy-Duty Mini-Cat Rewinder. This external rewinder features a variable core diameter of 1 to 4 inches, allowing for coreless rewinding as well. With a maximum roll diameter of 8.5 inches, heavy-duty steel and aluminum construction, and a maximum speed of 102 inches per second, this reliable rewinder is designed for continuous 24/7 operation. Save time and money while enhancing efficiency with the Mini-Cat Rewinder.
Product Specifications
Technical Specs Alternating Current Ac Input Voltage
120 V | 220 V
Technical Specs Available Options
APG-MC (Outer Roll Guide)
Technical Specs Core Diameter
1 to 4 in | 25 to 102 mm
Technical Specs Depth
12.5 in | 317 mm
Technical Specs Height
9 in | 228 mm
Technical Specs Maximum Media Width
4.5 in | 114 mm
Technical Specs Maximum Roll Diameter
8.5 in | 216 mm
Technical Specs Maximum Roll Weight
12 lb | 5.5 kg
Technical Specs Maximum Speed
102 in/s | 2590 mm/s | 245 rpm
Technical Specs Maximum Torque
70 in·oz
Technical Specs Minimum Speed
0.5 in/s | 12 mm/s
Technical Specs Note For Core Diameter
Both MINI-CAT Models can also rewind corelessly.
Technical Specs Number Of Flanges
1
Technical Specs Output Adjustable Direct Current Dc Voltage
1.5 to 12 V
Technical Specs Power
7 W
Technical Specs Warranty
1 year limited warranty on Power Adapter | 5 year limited warranty on Rewinder
Technical Specs Weight
15 lb | 6.8 kg
Technical Specs Width
8.5 in | 216 mm
