Heavy Duty Model 200 BPM Base Plate Mounted Jib Crane

Name: Heavy Duty Model 200 BPM Base Plate Mounted Jib Crane
Brand: Stanspec div. of American Crane & Hoist
SKU: REL-3ff8ad
Price: 5899.99 USD
Availability: OutOfStock

SKU:REL-3ff8ad

Heavy duty jib crane with 6000 lbs capacity, ideal for heavy-duty use in material handling applications.

$5,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

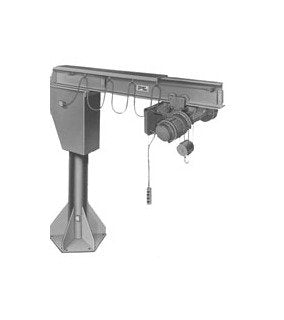

The Heavy Duty Model 200 BPM Base Plate Mounted Jib Crane is designed for standard duty applications with a capacity of 6000 lbs, making it ideal for heavy-duty and high-cycle usage. With a sturdy 12-inch boom size and a 13'-1" max height, this crane ensures safe and efficient material handling. Featuring a bolt circle diameter of 42 inches and a weight of 1810 lbs, it offers reliable performance for general purpose use. Equipped with various mounting options and electrification features, this crane is versatile for different applications.

Product Specifications

Electrification Electrification

Power Supply Extra Features

Anchor Bolts | Template

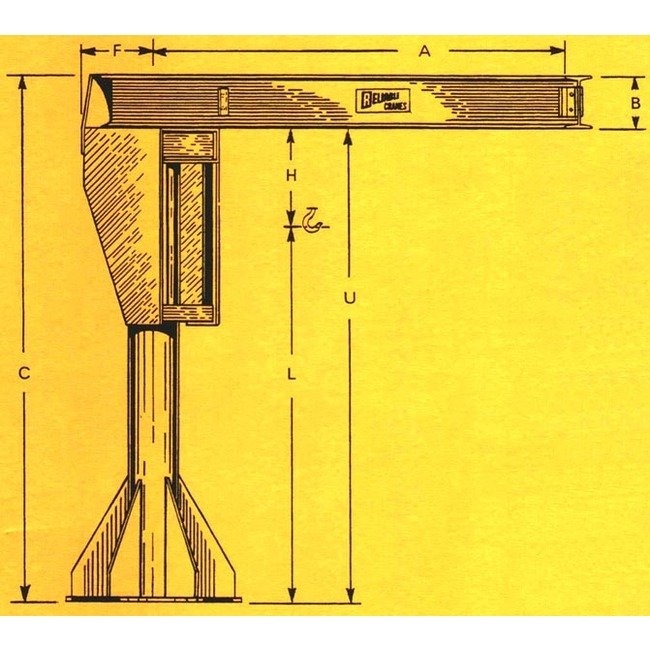

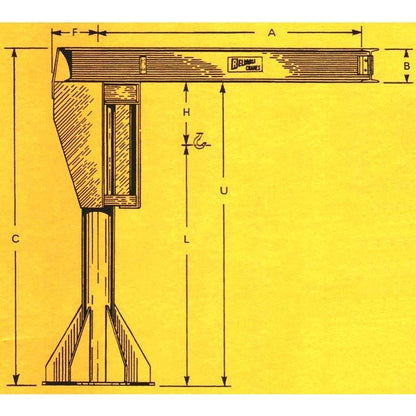

Specifications Base Plate Size D

48 inches

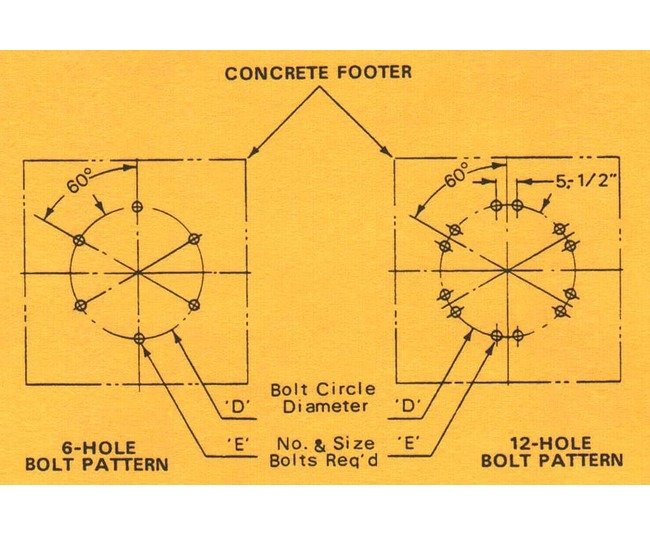

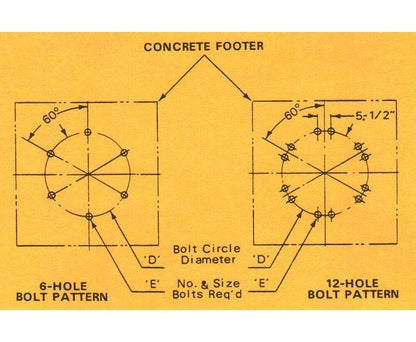

Specifications Bolt Circle Diameter D

42 inches

Specifications Bolt Diameter E

7/8 inches

Specifications Boom Size B

12 inches

Specifications Capacity

6000 lbs.

Specifications Hoist Headroom

Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use

Specifications Max Height C

13'-1"

Specifications Model

BPM | CIM | TRW | CDC | TDC | CBM | TRM

Specifications Mounting

BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted

Specifications No Of Bolts

Specifications Span A

8'-0"

Specifications Under Boom U

12'-0"

Specifications Usage

Heavy - Heavy Duty/High Cycle | Standard - General Purpose

Specifications Weight

1810 lbs.
