Heavy Duty Model 200 BPM Jib Crane

Name: Heavy Duty Model 200 BPM Jib Crane
Brand: Stanspec div. of American Crane & Hoist
SKU: REL-d56562
Price: 5399.99 USD
Availability: OutOfStock

SKU:REL-d56562

Enhance efficiency with the Heavy Duty Model 200 BPM Jib Crane - 4000 lbs. capacity, 16' span, ideal for heavy-duty applications.

$5,399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

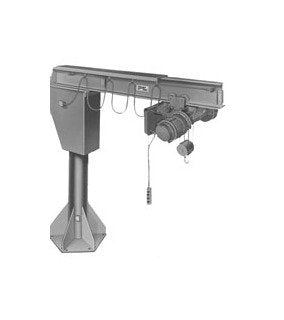

The Heavy Duty Model 200 BPM Jib Crane is a reliable solution designed for standard duty applications. With a capacity of 4000 lbs. and a sturdy 48-inch base plate, this crane offers exceptional stability and strength. The 16-foot span and 13-foot-4-inch max height provide ample reach for loading, handling, and transferring heavy materials with precision. Whether for indoor or outdoor use, this crane ensures safe hoist travel and efficient operation. Suitable for heavy-duty/high-cycle usage, it meets stringent industry standards for durability and performance.

Product Specifications

Electrification Electrification

Power Supply Extra Features

Anchor Bolts | Template

Specifications Base Plate Size D

48 inches

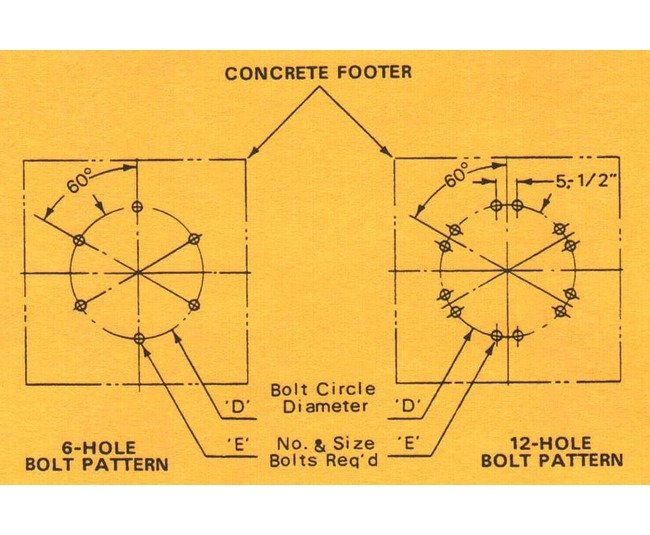

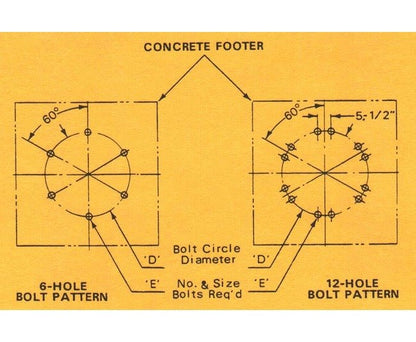

Specifications Bolt Circle Diameter D

42 inches

Specifications Bolt Diameter E

7/8 inches

Specifications Boom Size B

15 inches

Specifications Capacity

4000 lbs.

Specifications Hoist Headroom

Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use

Specifications Max Height C

13'-4"

Specifications Model

BPM | CIM | TRW | CDC | TDC | CBM | TRM

Specifications Mounting

BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted

Specifications No Of Bolts

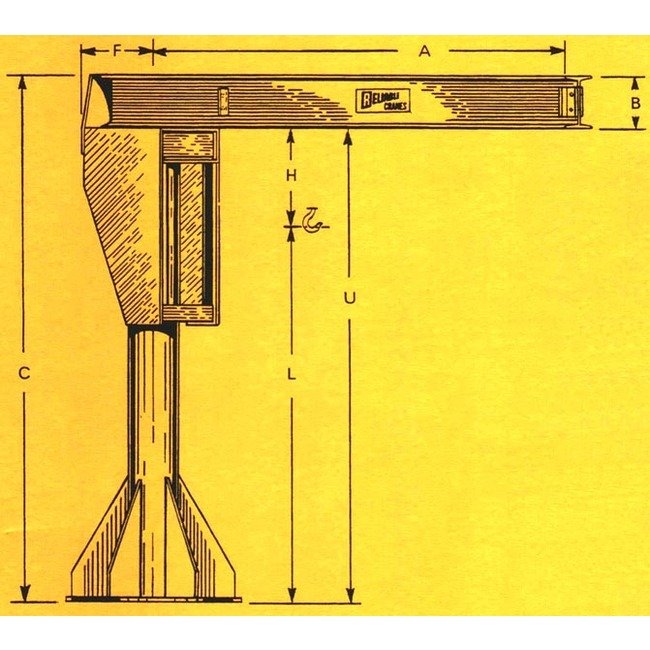

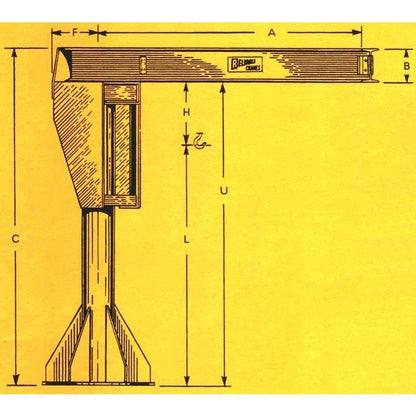

Specifications Span A

16'-0"

Specifications Under Boom U

12'-0"

Specifications Usage

Heavy - Heavy Duty/High Cycle | Standard - General Purpose

Specifications Weight

2695 lbs.
