Heavy Duty Model 200 BPM Jib Crane
Heavy Duty Model 200 BPM Jib Crane
SKU:REL-cc7179
Efficient, safe handling with 3000 lbs capacity. Ideal for heavy-duty use and precise material transfer.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Heavy Duty Model 200 BPM Jib Crane
$2,899.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Model 200 BPM Jib Crane
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

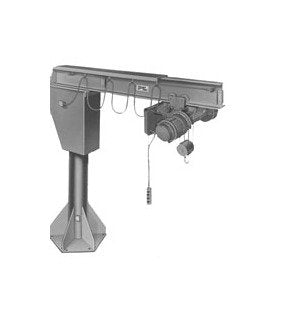

The Heavy Duty Model 200 BPM Base Plate Mounted Jib Crane is designed for standard duty applications requiring precision and safety. With a capacity of 3000 lbs and a boom size of 12 inches, this crane ensures efficient material loading, handling, and transferring. The limited boom deflection enhances hoist travel ease and safety. Suitable for both manual and motorized hoists, this crane is ideal for heavy-duty/high-cycle use. It meets industry standards for reliable performance in diverse operational environments.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template

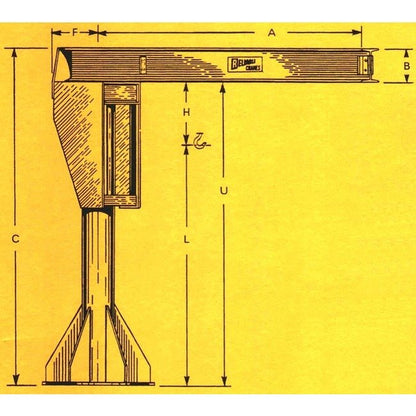

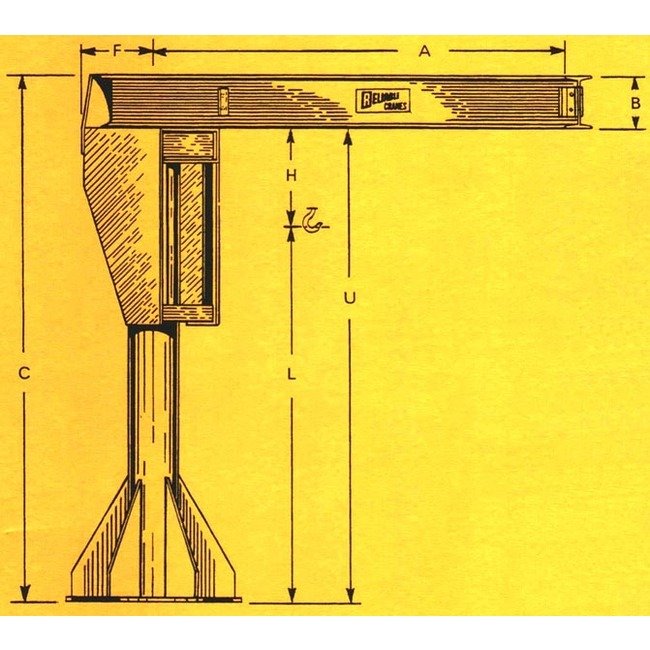

Specifications Base Plate Size D
42 inches

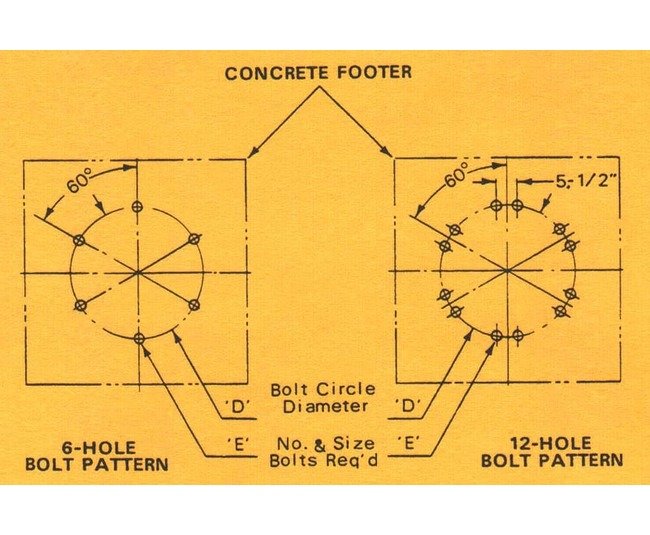

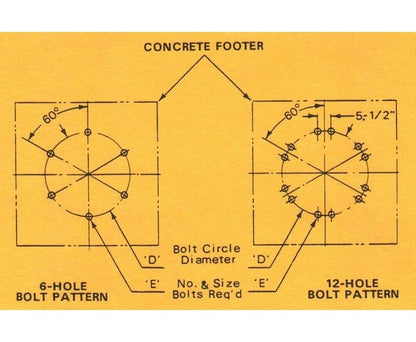

Specifications Bolt Circle Diameter D
35 inches
Specifications Bolt Diameter E
7/8 inches
Specifications Boom Size B
12 inches
Specifications Capacity
3000 lbs.
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Height C
11'-1"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications No Of Bolts
12
Specifications Span A
12'-0"
Specifications Under Boom U
10'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
1595 lbs.
