Heavy Duty Model 200 BPM Jib Crane
Heavy Duty Model 200 BPM Jib Crane
SKU:REL-da7fe1
Efficiently handle up to 3000 lbs with the precision-designed Model 200 BPM Jib Crane, ensuring safe and easy hoist travel for diverse applications.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
Heavy Duty Model 200 BPM Jib Crane
$5,999.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Model 200 BPM Jib Crane
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

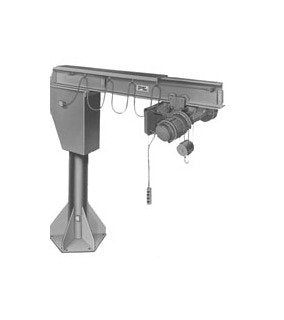

Ideal for standard duty applications, the Model 200 BPM Jib Crane can efficiently handle loads up to 3000 lbs. Designed for precision and safety, it limits boom deflection for easy hoist travel. With a 10' span and various mounting options, this crane is suitable for both heavy-duty and general-purpose use.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template

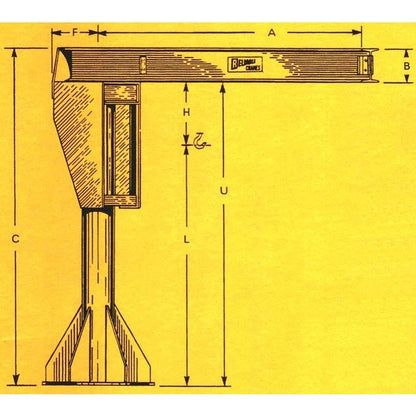

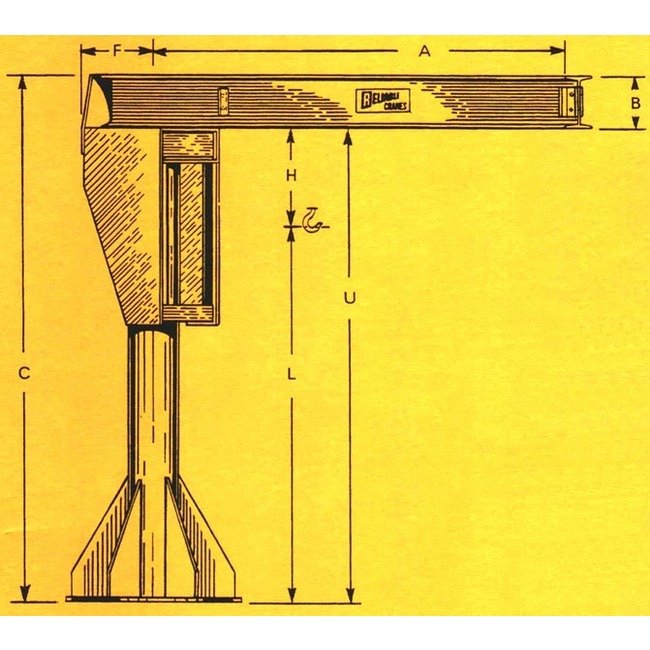

Specifications Base Plate Size D
42 inches

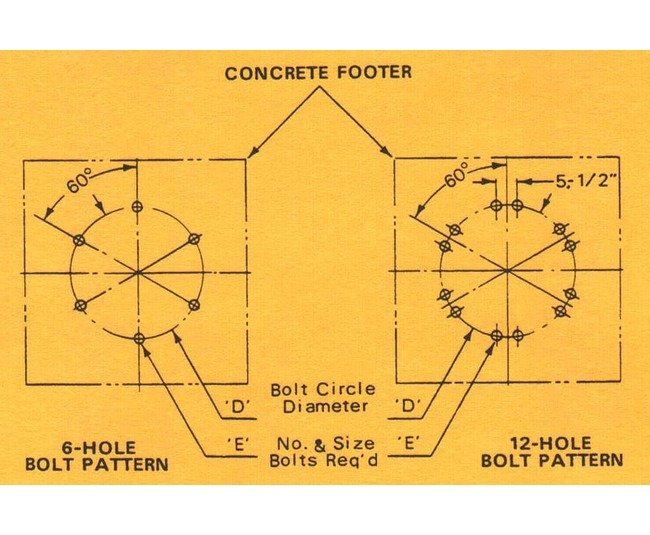

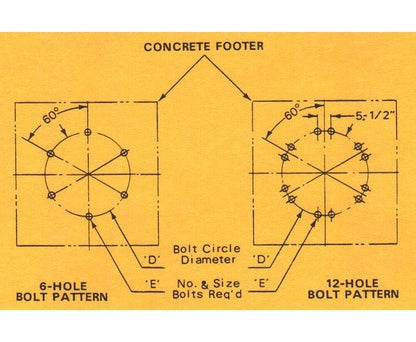

Specifications Bolt Circle Diameter D
35 inches
Specifications Bolt Diameter E
7/8 inches
Specifications Boom Size B
10 inches
Specifications Capacity
3000 lbs.
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Height C
12'-11"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications No Of Bolts
12
Specifications Span A
10'-0"
Specifications Under Boom U
12'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
1360 lbs.
