Heavy Duty Model 200 BPM Jib Cranes
Heavy Duty Model 200 BPM Jib Cranes
SKU:REL-9126ea
Robust 6000 lbs. capacity jib cranes for efficient material handling in industrial applications.
Regular price
$5,899.00
Regular price
Sale price
$5,899.00
Unit price
per
Initiate Order
Heavy Duty Model 200 BPM Jib Cranes
$5,899.00
Quantity: 1
Claim Your Seller Account
Heavy Duty Model 200 BPM Jib Cranes
$5,899.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

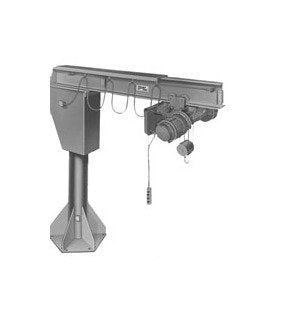

The Heavy Duty Model 200 BPM Jib Cranes are expertly designed for standard duty applications, offering a robust capacity of 6000 lbs. These jib cranes are ideal for heavy-duty tasks in industrial settings, ensuring safe and efficient material handling. With a durable construction and precise engineering, they guarantee reliable performance for loading, handling, and transferring materials. The innovative design limits boom deflection, facilitating smooth hoist travel and precise load assembly.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template

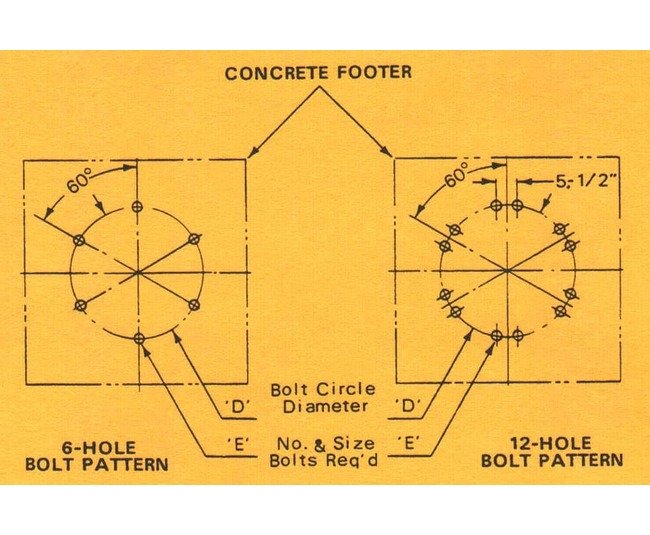

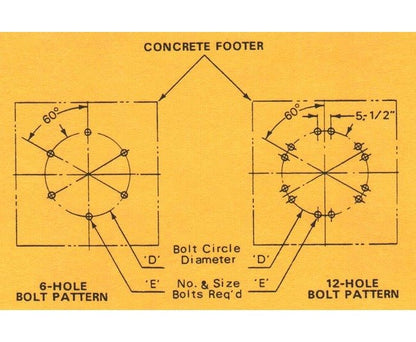

Specifications Base Plate Size D
48 inches
Specifications Bolt Circle Diameter D
42 inches
Specifications Bolt Diameter E
7/8 inches

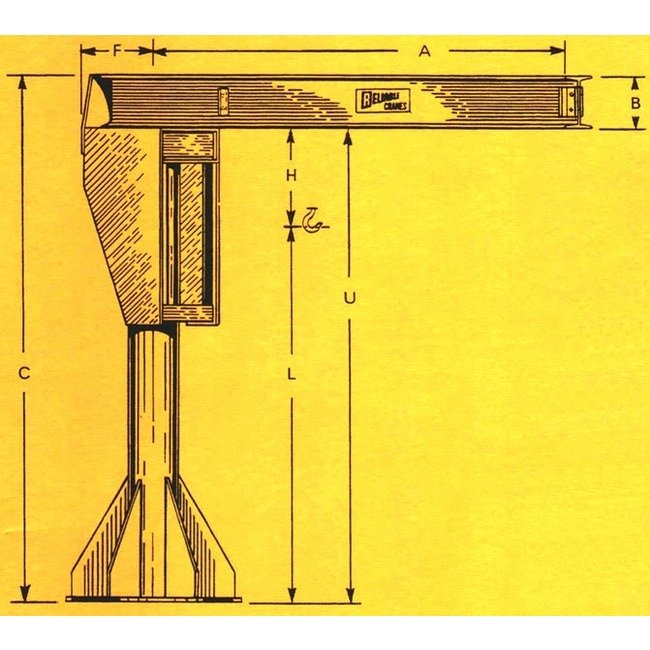

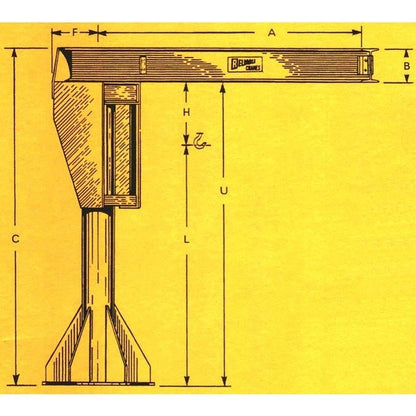

Specifications Boom Size B
15 inches
Specifications Capacity
6000 lbs.
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Height C
16'-4"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications No Of Bolts
12
Specifications Span A
12'-0"
Specifications Under Boom U
15'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
2680 lbs.
