Heavy Duty Model 200 CIM Concrete Insert Mount Jib Cranes
Heavy Duty Model 200 CIM Concrete Insert Mount Jib Cranes
SKU:REL-c228b1
Reliable 6000 lbs. capacity jib crane for efficient material handling tasks.
Regular price
$8,499.99
Regular price
Sale price
$8,499.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The Heavy Duty Model 200 CIM Concrete Insert Mount Jib Cranes are expertly designed for standard duty applications, offering a robust capacity of 6000 lbs. and structural integrity that meets or exceeds A.I.S.C. Specifications. With a generous span of 14'-0" and adjustable bottom roller assembly for leveling, these jib cranes provide reliable performance in loading, handling, and material transfer tasks. Precision upper head and lower roller bearings ensure longevity, while options for 360° rotation electric current conductors or air supply swivel connectors cater to various operational needs.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template

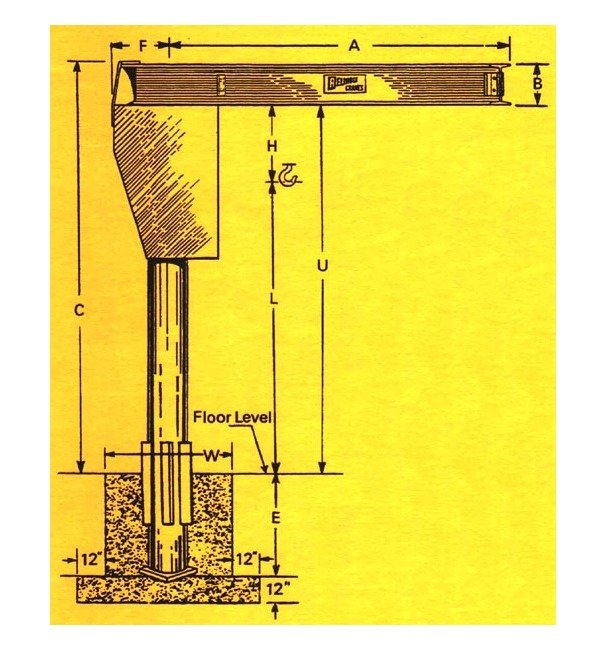

Specifications Boom Size B
18 inches
Specifications Capacity
6000 lbs.
Specifications Footer Depth E
5'-0"
Specifications Footer Width W
8'-0"
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Height C
13'-7"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
14'-0"
Specifications Under Boom U
12'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
3000 lbs.
