Heavy Duty Model 200 CIM Concrete Insert Mount Jib Cranes
Heavy Duty Model 200 CIM Concrete Insert Mount Jib Cranes
SKU:REL-0299c1
Heavy Duty jib cranes for safe, efficient material handling with 10000 lbs. capacity, A.I.S.C. compliant design, and versatile options.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The Heavy Duty Model 200 CIM Concrete Insert Mount Jib Cranes are specially designed for standard duty applications requiring a hoist. With a rated capacity of 10000 lbs. and structural adherence to A.I.S.C. Specifications, these jib cranes excel in loading, handling, and material transfer. Featuring precision assembly, adjustable boom leveling, and durable roller bearings with a 10000-hour average life, they ensure safe and efficient operations. Optional electrification for continuous rotation, various mounting options, and compatibility with different hoist types make them versatile for heavy-duty use.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template

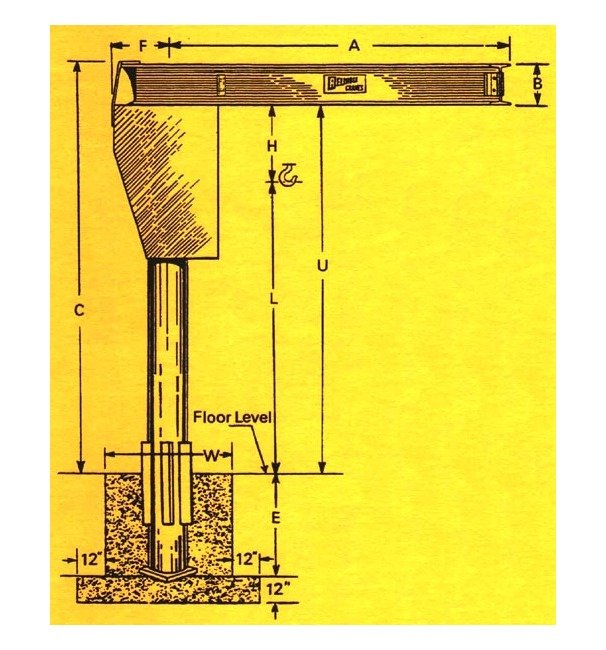

Specifications Boom Size B
15 inches
Specifications Capacity
10000 lbs.
Specifications Footer Depth E
5'-0"
Specifications Footer Width W
8'-0"
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Height C
13'-4"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
8'-0"
Specifications Under Boom U
12'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
2345 lbs.
