Heavy Duty Model 200 CIM Concrete Insert Mount Jib Cranes
Heavy Duty Model 200 CIM Concrete Insert Mount Jib Cranes
SKU:REL-a5d81a
Robust Model 200 CIM Jib Cranes for precision handling and reliable performance in heavy-duty applications.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The Heavy Duty Model 200 CIM Concrete Insert Mount Jib Cranes are specifically engineered for standard duty applications requiring precision and reliability. With a robust capacity of 10000 lbs., a generous span of 20'-0", and a sturdy design meeting or exceeding A.I.S.C. Specifications, these jib cranes excel in loading, handling, and transferring materials. Featuring precision bearings with a 10,000 hours average life, adjustable bottom roller assembly for boom leveling, and optional electrification for continuous rotation, these cranes ensure safe and efficient operation for heavy-duty tasks.

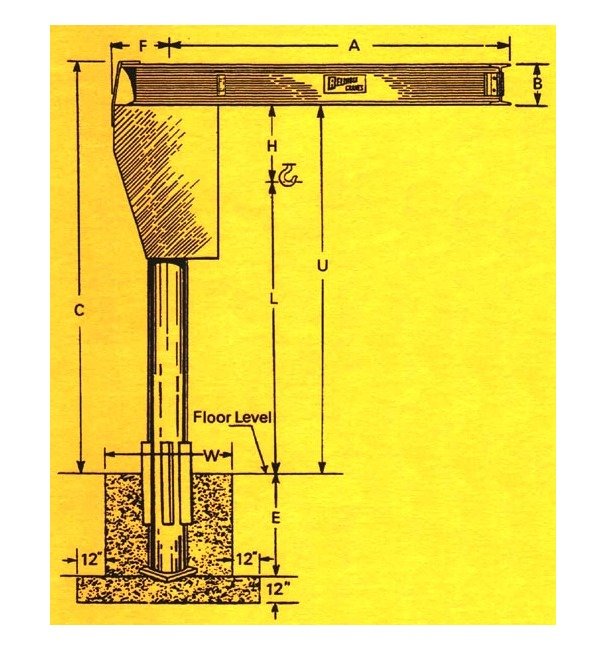

Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template
Specifications Boom Size B
24 inches
Specifications Capacity
10000 lbs.
Specifications Footer Depth E
5'-0"
Specifications Footer Width W
9'-0"
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Height C
14'-1"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
20'-0"
Specifications Under Boom U
12'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
5825 lbs.
