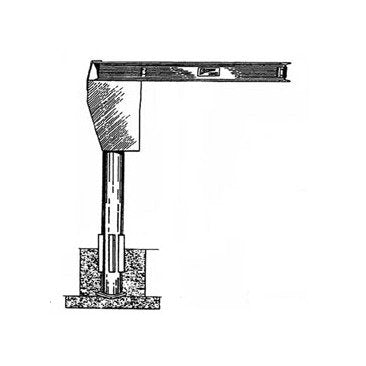

Heavy-Duty Model 200 CIM Concrete Jib Crane
Heavy-Duty Model 200 CIM Concrete Jib Crane
SKU:REL-620898
Reliable heavy-duty jib crane for safe and efficient material handling up to 10000 lbs capacity. Precision-designed to meet A.I.S.C. specifications.
Regular price
$8,599.99
Regular price
Sale price
$8,599.99
Unit price
per
Initiate Order
Heavy-Duty Model 200 CIM Concrete Jib Crane
$8,599.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Model 200 CIM Concrete Jib Crane
$8,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Model 200 CIM Concrete Insert Mount Jib Crane is engineered for reliable performance in standard duty applications, accommodating a load capacity of up to 10000 lbs. Precision-designed to limit boom deflection, ensuring safe and efficient material handling. Featuring a durable construction that meets or exceeds A.I.S.C. specifications, with adjustable bottom roller assembly for leveling flexibility. Options for 360° rotation electric current conductors available upon request, ideal for continuous rotation needs.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template

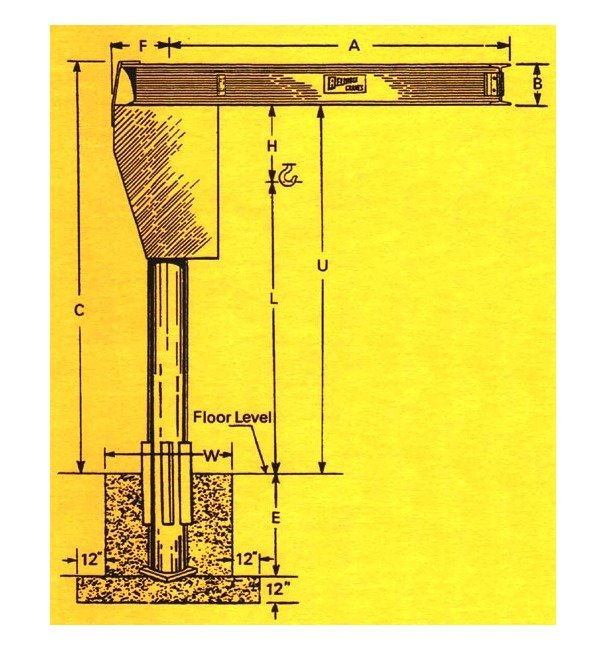

Specifications Boom Size B
20 inches
Specifications Capacity
10000 lbs.
Specifications Footer Depth E
5'-0"
Specifications Footer Width W
9'-0"
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Height C
16'-9"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
14'-0"
Specifications Under Boom U
15'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
4140 lbs.
