Heavy Duty Model 200 Concrete Insert Mount Jib Crane
Heavy Duty Model 200 Concrete Insert Mount Jib Crane
SKU:REL-98f70a
Heavy Duty 10000 lbs. Concrete Insert Mount Jib Crane with precise design for safe and efficient material handling.
Regular price
$18,500.00
Regular price
Sale price
$18,500.00
Unit price
per
Initiate Order
Heavy Duty Model 200 Concrete Insert Mount Jib Crane
$18,500.00
Quantity: 1
Claim Your Seller Account
Heavy Duty Model 200 Concrete Insert Mount Jib Crane
$18,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Model 200 Concrete Insert Mount Jib Crane is specifically engineered for standard duty applications with a capacity of 10000 lbs. It excels in loading, handling, and transferring materials with precision and safety. Designed to meet or exceed A.I.S.C. Specifications, it ensures smooth hoist travel with limited boom deflection. Featuring durable upper head and lower roller bearings, adjustable bottom roller assembly, and optional electrification for seamless rotation, this crane is ideal for heavy-duty industrial applications.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template

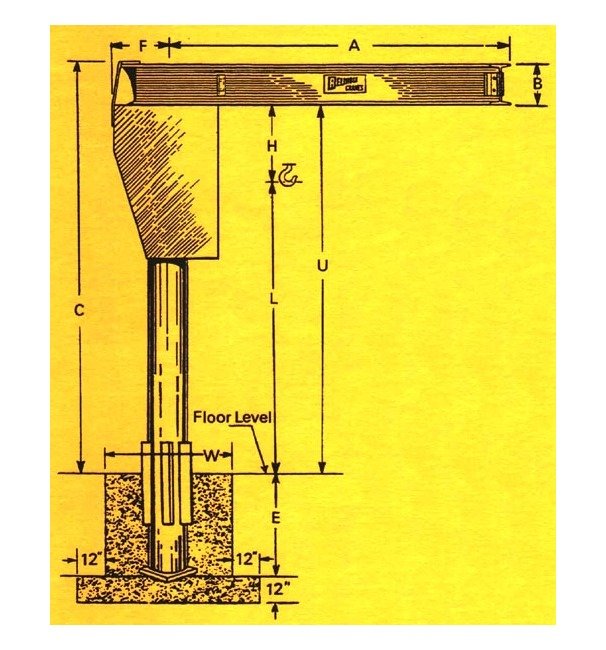

Specifications Boom Size B
24 inches
Specifications Capacity
10000 lbs.
Specifications Footer Depth E
5'-0"
Specifications Footer Width W
9'-0"
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use
Specifications Max Height C
17'-1"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications Span A
20'-0"
Specifications Under Boom U
15'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
6430 lbs.
