Stanspec div. of American Crane & Hoist →

Heavy Duty Model 200 Jib Cranes

Name: Heavy Duty Model 200 Jib Cranes
Brand: Stanspec div. of American Crane & Hoist
SKU: REL-a30823
Price: 4499.99 USD
Availability: OutOfStock

SKU:REL-a30823

Explore the Heavy Duty Model 200 Jib Cranes for superior material handling. Capacity: 6000 lbs. Ideal for precision assembly and general-purpose use.

$4,499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

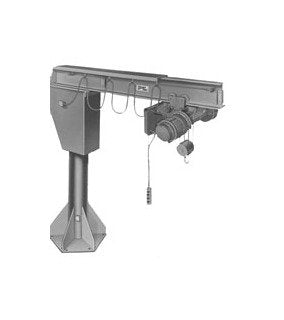

The Heavy Duty Model 200 BPM Base Plate Mounted Jib Cranes are engineered for standard-duty applications, supporting up to 6000 lbs. Designed for precision handling, these cranes offer a 12' span, 15" boom size, and a 13'-4" max height. With safety and efficiency in mind, the boom deflection is limited for smooth hoist travel. Ideal for heavy-duty usage, these cranes ensure easy and safe material loading, handling, and transferring, meeting and exceeding general-purpose requirements in industrial settings.

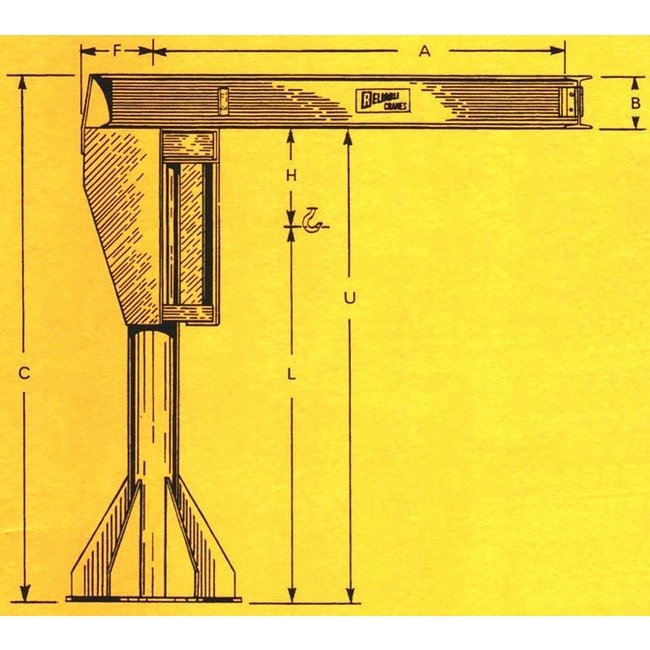

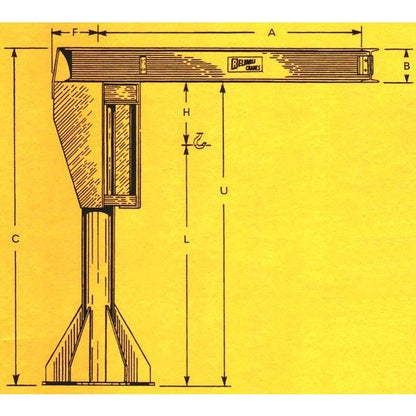

Product Specifications

Electrification Electrification

Power Supply Extra Features

Anchor Bolts | Template

Specifications Base Plate Size D

48 inches

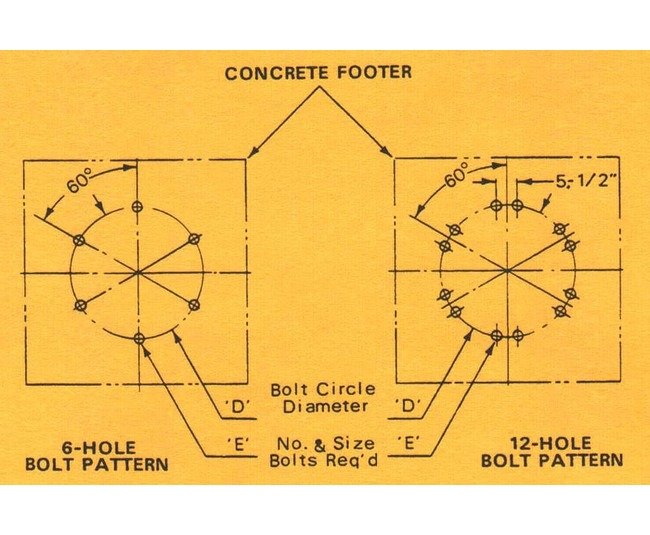

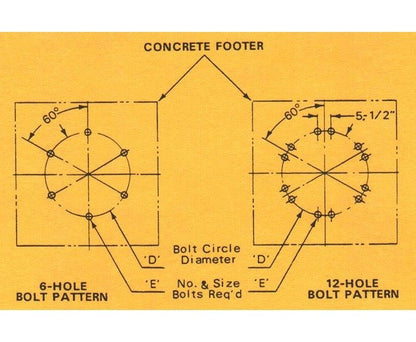

Specifications Bolt Circle Diameter D

42 inches

Specifications Bolt Diameter E

7/8 inches

Specifications Boom Size B

15 inches

Specifications Capacity

6000 lbs.

Specifications Hoist Headroom

Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use

Specifications Max Height C

13'-4"

Specifications Model

BPM | CIM | TRW | CDC | TDC | CBM | TRM

Specifications Mounting

BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted

Specifications No Of Bolts

Specifications Span A

12'-0"

Specifications Under Boom U

12'-0"

Specifications Usage

Heavy - Heavy Duty/High Cycle | Standard - General Purpose

Specifications Weight

2215 lbs.

Heavy Duty Model 200 Jib Cranes
