Heavy Duty Model 400 BPM Base Plate Mounted Jib Crane
Heavy Duty Model 400 BPM Base Plate Mounted Jib Crane
SKU:REL-04bf26
Reliable heavy-duty jib crane for precise and durable heavy impact operations. Ideal for close tolerance assembly work and high production environments.
Regular price
$6,999.99
Regular price
Sale price
$6,999.99
Unit price
per
Initiate Order
Heavy Duty Model 400 BPM Base Plate Mounted Jib Crane
$6,999.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Model 400 BPM Base Plate Mounted Jib Crane
$6,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

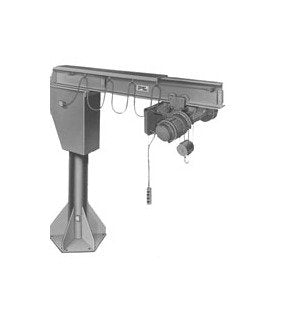

The Model 400 BPM Base Plate Mounted Jib Crane is a robust solution designed for heavy-duty high cycle operations that demand precise load spotting with minimal deflection. Ideal for loading precision parts into machine tools, jigs, or fixtures, this crane excels in close tolerance assembly work and heavy impact environments. With a large capacity and precision upper head and lower roller bearings offering 10,000 hours of average life, this crane ensures reliability and durability. Featuring adjustable bottom roller assembly for leveling the boom, rigid base plate supported by heavy full plate gussets, and optional 360° rotation accessories for uninterrupted operation, this crane is tailored for high production applications.
Product Specifications
Electrification Electrification
Bottom Entry Collector Rings | Control Conductors | Disconnect Switch | Tagline | Top Entry Collector Rings | Trolley Track
Power Supply Extra Features
Anchor Bolts | Template
Specifications Base Plate Size
42 inches

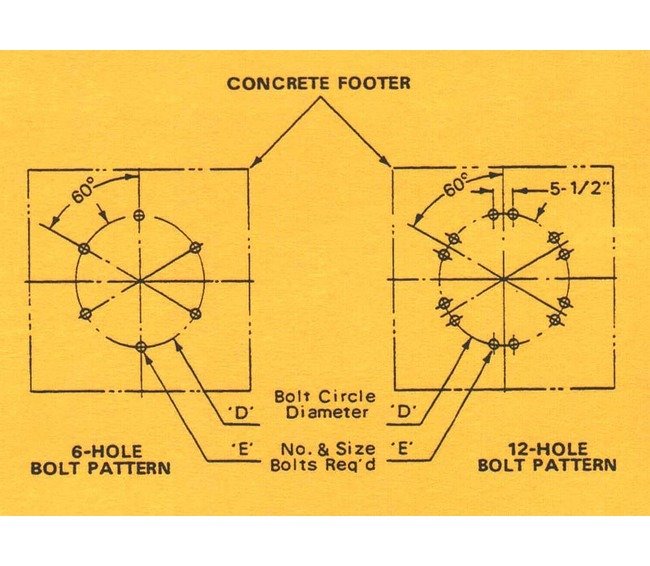

Specifications Bolt Circle Diameter D
35 inches
Specifications Bolt Diameter E
7/8 inches
Specifications Boom Size B
15"C
Specifications Capacity
1000 lbs.
Specifications Hoist Headroom
Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use

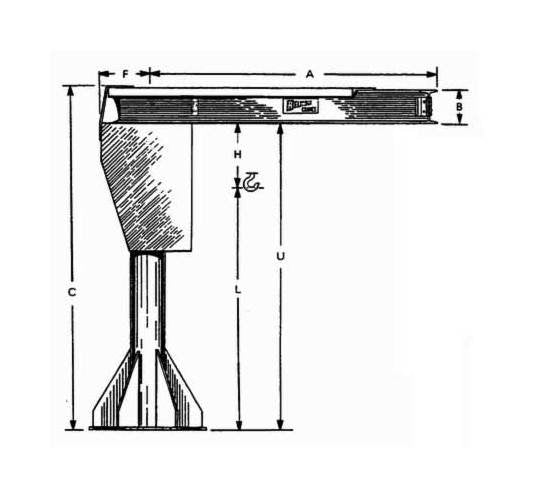

Specifications Max Height C
17'-4"
Specifications Model
BPM | CIM | TRW | CDC | TDC | CBM | TRM
Specifications Mounting
BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted
Specifications No Of Bolts
12
Specifications Span A
20'-0"
Specifications Under Boom U
16'-0"
Specifications Usage
Heavy - Heavy Duty/High Cycle | Standard - General Purpose
Specifications Weight
2555 lbs.
