Stanspec div. of American Crane & Hoist →

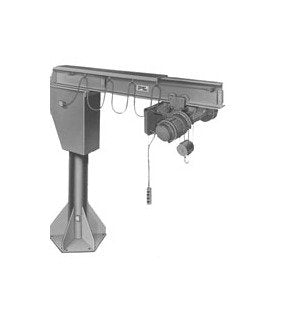

Heavy Duty Model 400 BPM Jib Crane

Name: Heavy Duty Model 400 BPM Jib Crane
Brand: Stanspec div. of American Crane & Hoist
SKU: REL-e9952f
Price: 8499.99 USD
Availability: OutOfStock

SKU:REL-e9952f

Heavy duty 6000 lbs. capacity jib crane with precision bearings, adjustable boom, and 360° rotation for demanding operations.

$8,499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy Duty Model 400 BPM Jib Crane is engineered for high-cycle operations with precise load positioning and minimal deflection. Ideal for heavy impact environments, it features precision bearings for longevity, adjustable boom assembly, and enhanced lateral stability for boom lengths over 12 ft. Offering a 6000 lbs. capacity and 360° rotation options, this crane is suitable for demanding applications requiring continuous uninterrupted rotation. Choose from various mounting options and electrification features for versatile functionality.

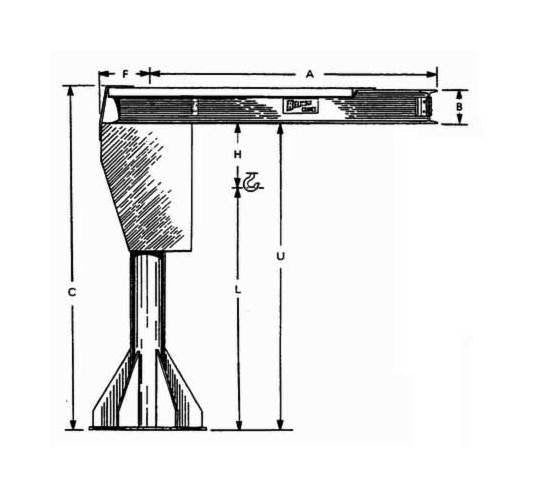

Product Specifications

Electrification Electrification

Power Supply Extra Features

Anchor Bolts | Template

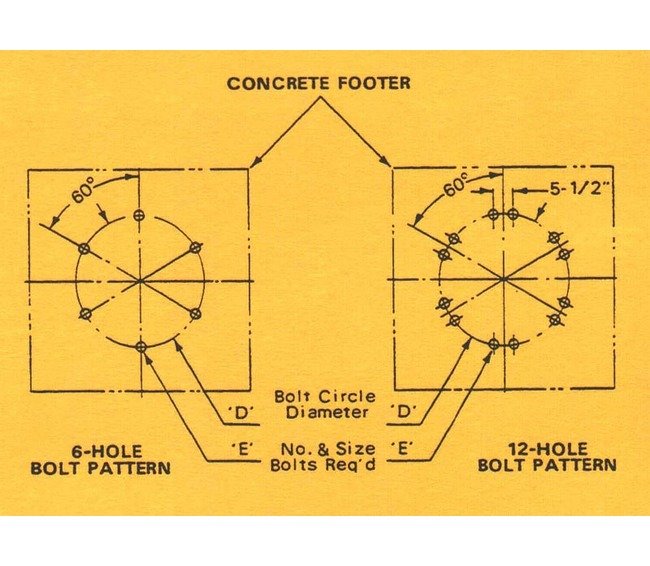

Specifications Base Plate Size

62 inches

Specifications Bolt Circle Diameter D

54 inches

Specifications Bolt Diameter E

1 1/4 inches

Specifications Boom Size B

24"C

Specifications Capacity

6000 lbs.

Specifications Hoist Headroom

Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use

Specifications Max Height C

14'-1"

Specifications Model

BPM | CIM | TRW | CDC | TDC | CBM | TRM

Specifications Mounting

BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted

Specifications No Of Bolts

Specifications Span A

20'-0"

Specifications Under Boom U

12'-0"

Specifications Usage

Heavy - Heavy Duty/High Cycle | Standard - General Purpose

Specifications Weight

5560 lbs.

Heavy Duty Model 400 BPM Jib Crane
