Heavy Duty Model A2 Air Winches
Heavy Duty Model A2 Air Winches
SKU:RIG-f830c3
Reliable Heavy Duty Model A2 Air Winches for rugged tasks. Self-locking worm gear, safety brake, durable steel base. Ideal for lifting/pulling.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
Heavy Duty Model A2 Air Winches
$3,499.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Model A2 Air Winches
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

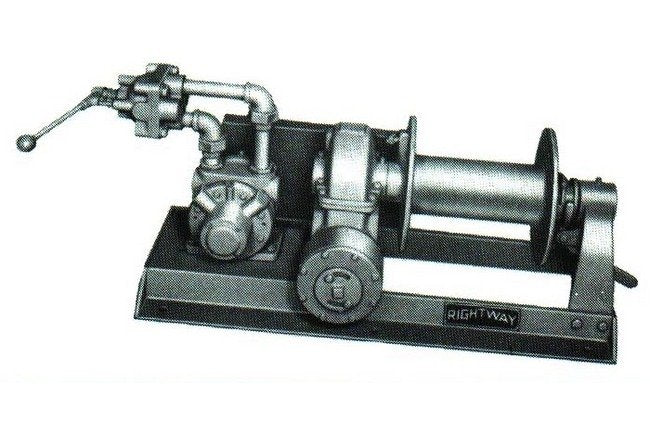

The Heavy Duty Model A2 Air Winches from Rightway Winches are designed for robust operations, featuring a free spooling drum with adjustable drag for optimal control. With a self-locking worm gear reduction system and oil bath lubrication, these winches ensure smooth and reliable performance in all weather conditions. Equipped with a safety brake for automatic mechanical load handling, these winches boast an all-steel fabricated base for maximum durability with a minimum 5 to 1 structural safety factor. Ideal for lifting and pulling applications, these winches offer a running capacity of 2000 lbs, a line speed of 40 FPM, and are compatible with various optional equipment such as a hand-operated control valve, pendant remote control, filter-oiler, exhaust muffler, and air pressure regulator.
Product Specifications
Specifications Air Requirement
120 CFM
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
210 ft.
Specifications Full Drum
500 ft.
Specifications Line Speed
40 FPM
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
410 lbs.
Specifications Optional Equipment
Control valve hand operated forward - reverse - off | Pendant Remote Control, 100 ft. Max. Pendant Length | Filter - Oiler, Exhaust Muffler, Air Pressure Regulator
Specifications Running Capacity Lbs
2000
Specifications Winch Height
16 inches
Specifications Winch Length
39 inches
Specifications Winch Width
19 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
5/16 inches
Standard Features 0
Free spooling drum has adjustable dragSelf-locking worm gear reduction - oilbath lubricationAll weather use is ideal for rugged model E2 and A2 winchesSafety brake automatic mechanical load typeAll steel fabricated winch base for maximum durability minimum 5 to 1 structural safety factor
