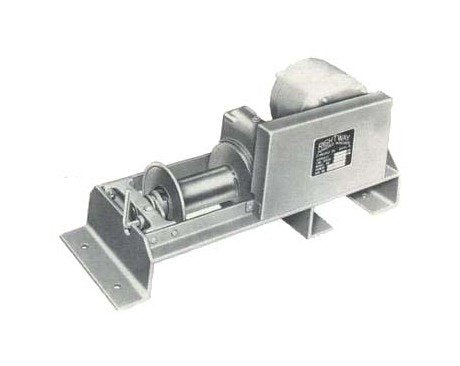

Heavy Duty Model E1 Electric Winch
Heavy Duty Model E1 Electric Winch
SKU:RIG-652cec
Durable Heavy Duty Electric Winch, 2000 lbs Capacity, 20 FPM Line Speed, Suitable for Lifting and Pulling Applications
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
Heavy Duty Model E1 Electric Winch
$1,499.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Model E1 Electric Winch
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Model E1 Electric Winch is a versatile and durable solution suitable for a wide range of lifting and pulling applications. With a running capacity of 2000 lbs and a line speed of 20 FPM, this winch is designed for reliability and performance. Featuring self-locking worm gear reduction with oil bath lubrication, it ensures smooth operation in all weather conditions. Precision sealed roller bearings and a 5 to 1 structural safety factor make it ideal for continuous use. The winch comes with a range of standard features and optional equipment, including electric motor brake for hoisting applications and controls for easy operation. Whether mounted on the ceiling, wall, or floor, this winch offers exceptional functionality and reliability.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
120 ft.
Specifications Electrical Current
115/230 V-1-60
Specifications Full Drum
285 ft.
Specifications Line Speed
20 FPM
Specifications Motor
2 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
290 lbs.
Specifications Optional Equipment
Controls to suit application | Electric Motor Brake (recommended for all hoisting applications) | Mechanical Torque Limiter | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling
Specifications Running Capacity Lbs
2000
Specifications Winch Height
18 inches
Specifications Winch Length
37 inches
Specifications Winch Width
18 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
5/16 inches
Standard Features 0
Mounting can be mounted in any position ceiling, wall or floorSelf-locking worm gear reduction oilbath lubrication All weather use is ideal for model R and RA winches Rugged quality precision sealed roller bearings throughout, made to run all day every day, minimum 5 to 1 structural safety factor
