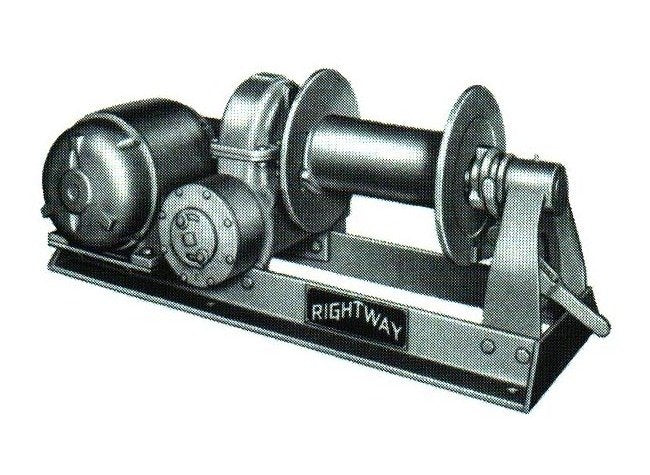

Heavy Duty Model E2 Electric Winch - 7500 lbs
Heavy Duty Model E2 Electric Winch - 7500 lbs
SKU:RIG-6f80fd
Powerful Heavy Duty Electric Winch - 7500 lbs, 15 HP Motor, Ideal for Lifting and Pulling Tasks
Regular price
$3,899.99
Regular price
Sale price
$3,899.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

The Heavy Duty Model E2 Electric Winch is designed for rugged use, featuring a self-locking worm gear reduction system with oil-bath lubrication. With a running capacity of 7500 lbs and a 15 HP motor, this winch is ideal for heavy lifting and pulling tasks. It comes with safety features such as automatic mechanical load type brake and a durable all-steel fabricated base with a 5 to 1 structural safety factor. Optional equipment includes controls tailored for specific applications, electric motor brake, mechanical torque limiter, and cable drum pressure roller for efficient wire management.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
150 ft.
Specifications Electrical Current
230/460-3-60
Specifications Full Drum
300 ft.
Specifications Line Speed
35 FPM
Specifications Motor
15 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
825 lbs.
Specifications Optional Equipment
Controls to suit application | Electric Motor Brake (recommended for all hoisting applications) | Mechanical Torque Limiter | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling
Specifications Running Capacity Lbs
7500
Specifications Winch Height
18 inches
Specifications Winch Length
43 inches
Specifications Winch Width
18 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
9/16 inches
Standard Features 0
Free spooling drum has adjustable dragSelf-locking worm gear reduction - oilbath lubricationAll weather use is ideal for rugged model E2 and A2 winchesSafety brake automatic mechanical load typeAll steel fabricated winch base for maximum durability minimum 5 to 1 structural safety factor
