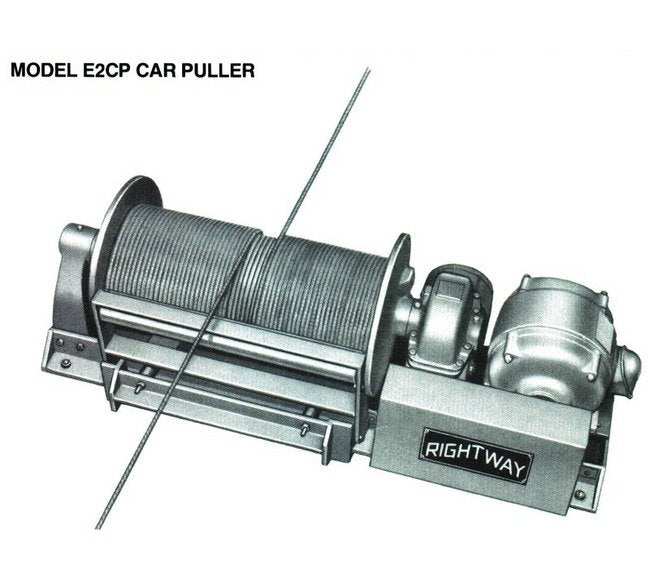

Heavy-Duty Model E2CP Car Puller Winch
Heavy-Duty Model E2CP Car Puller Winch
SKU:RIG-6dbd39
High torque hoist duty winch with precision gearing, all-weather use, and durable design for maximum pulling control and safety.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
Heavy-Duty Model E2CP Car Puller Winch
$8,999.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Model E2CP Car Puller Winch
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy-Duty Model E2CP Car Puller Winch is designed for high torque hoist duty with a precision gearing system operating in oilbath lubrication for all-weather use. Featuring large diameter drums for extended wire rope life, this winch offers controlled pulling, stopping, and spotting capabilities. With a pulling distance of 50', 75', or 150' in each direction and the option for rope leads from one or both sides of the drum, this winch ensures maximum durability with an all-steel drum and base. The 5 to 1 structural safety factor provides reliability and peace of mind in demanding applications. Ideal for both consumer and institutional buyers seeking rugged performance and longevity.
Product Specifications
Specifications Capacity Full Load Running
15000
Specifications Capacity Full Load Starting
30000
Specifications Drum Diameter
16 inches
Specifications Line Speed
45 FPM
Specifications Model
E2CP Car Puller
Specifications Motor
40 HP
Specifications Net Weight
3200 lbs.
Specifications Optional Equipment
Electric Motor Brake - for precision spotting | Rotary travel limit switch | Controls to suit application | Cable Drum Pressure Roller - keeps rope in grooves under slack line conditions | Torque Limiter Mechanical Clutch - automatically resets when excessive pull is released
Specifications Winch Height
29 inches
Specifications Winch Length
77 inches
Specifications Winch Width
31 inches
Specifications Wire Rope Size
7/8 inches
Standard Features 0
Totally enclosed motor high torque hoist duty Precision gearing operating in oilbath lubrication All weather use is ideal for rugged model E2CP controlled pulling, stopping and spotting Large diameter drums increases wire rope lifePulling distance 50', 75', 150' each direction Rope leads both from one side or single lead from opposite side of drum All steel drum and base for maximum durability minimum 5 to 1 structural safety factor.
