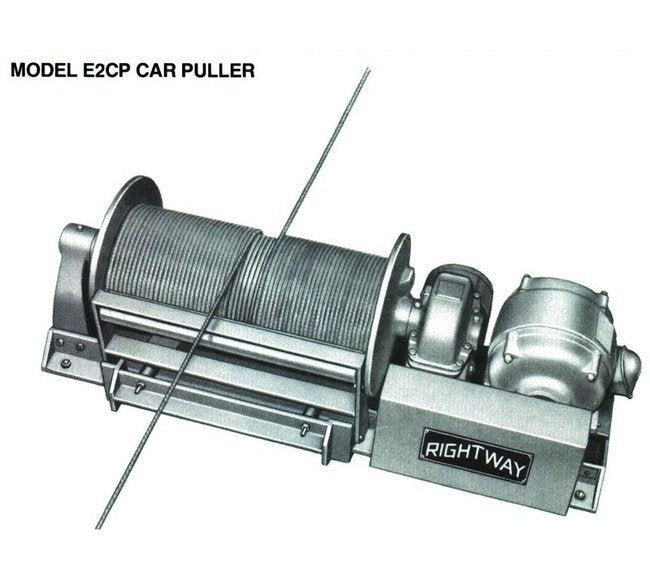

The Heavy Duty Model E2CP Car Pullers are designed for precision pulling, stopping, and spotting operations. With a high torque motor and oilbath lubrication, these pullers offer reliable performance in all weather conditions. Featuring large diameter drums for increased wire rope life and a 5 to 1 structural safety factor, they ensure maximum durability. The pullers come with a range of standard features including various pulling distances, rope lead options, and all-steel construction for rugged use. Optional equipment like an Electric Motor Brake and Torque Limiter Mechanical Clutch enhance precision and safety.
Product Specifications
Specifications Capacity Full Load Running
12000
Specifications Capacity Full Load Starting
24000
Specifications Drum Diameter
14 inches
Specifications Line Speed
45 FPM
Specifications Model
E2CP Car Puller
Specifications Motor
30 HP
Specifications Net Weight
2400 lbs.
Specifications Optional Equipment
Electric Motor Brake - for precision spotting | Rotary travel limit switch | Controls to suit application | Cable Drum Pressure Roller - keeps rope in grooves under slack line conditions | Torque Limiter Mechanical Clutch - automatically resets when excessive pull is released
Specifications Winch Height
27 inches
Specifications Winch Length
71 inches
Specifications Winch Width
30 inches
Specifications Wire Rope Size
3/4 inches
Standard Features 0
Totally enclosed motor high torque hoist duty Precision gearing operating in oilbath lubrication All weather use is ideal for rugged model E2CP controlled pulling, stopping and spotting Large diameter drums increases wire rope lifePulling distance 50', 75', 150' each direction Rope leads both from one side or single lead from opposite side of drum All steel drum and base for maximum durability minimum 5 to 1 structural safety factor.
