Heavy Duty Model E4 Electric Hoist
Heavy Duty Model E4 Electric Hoist
SKU:RIG-63f5e5
Powerful 4000 lbs Electric Hoist for heavy-duty lifting applications. Precision gearing, automatic safety brake, and all-weather durability.
Regular price
$5,699.99
Regular price
Sale price
$5,699.99
Unit price
per
Initiate Order
Heavy Duty Model E4 Electric Hoist
$5,699.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Model E4 Electric Hoist
$5,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

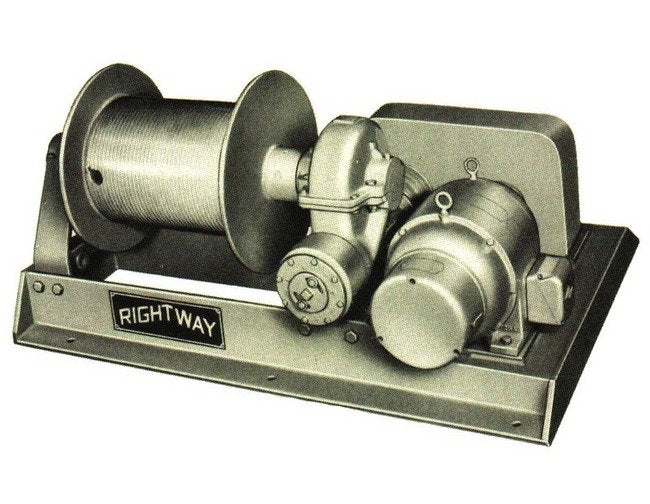

The Heavy Duty Model E4 Electric Hoist is a powerhouse designed for long lift high-speed hoisting applications. With a robust 15 HP motor and a running capacity of 4000 lbs, it offers precision gearing, self-locking reduction, and automatic mechanical load holding safety brake. This hoist is built for durability with its oil bath lubrication, regenerative lowering, and all-weather usability. Ideal for rugged conditions, it meets a minimum 5 to 1 structural safety factor, ensuring reliability in demanding environments. Optional features include controls tailored to specific applications, grooved drums, and electric motor brakes for enhanced safety.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
290 ft.
Specifications Drum Diameter
6 3/4 inches
Specifications Electrical Current
230/460-3-60
Specifications Full Drum
675 ft.
Specifications Line Speed
85 FPM
Specifications Motor
15 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
605 lbs.
Specifications Optional Equipment
Controls to suit application | Grooved drums | Overspeed automatic load holding drum brake and electric shut-off | Electric Motor Brake (recommended for all hoisting applications) | Two or more wire ropes off the drum | Slack Line Limit Switch | Travel Limit Switch | Cable Drum Pressure Roller - assists multiple layer reeving evenly onto drum | Mechanical Torque Limiter - automatic reset
Specifications Running Capacity Lbs
4000
Specifications Standard Wire Rope Diameter
7/16 inches
Specifications Winch Height
17 inches
Specifications Winch Length
51 inches
Specifications Winch Width
26 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Standard Features 0
Ideal for long lift high speed hoisting applications Drum large diameter increases wire rope life Precision gearing self-locking reduction oil bath lubricated Safety brake automatic mechanical load holding type Regenerative lowering electrically retarded lowering speed Totally enclosed motor high torque hoist duty motor starting capacity is minimum two (2) times running All weather use is ideal for rugged model E4 winches minimum 5 to 1structural safety factor
