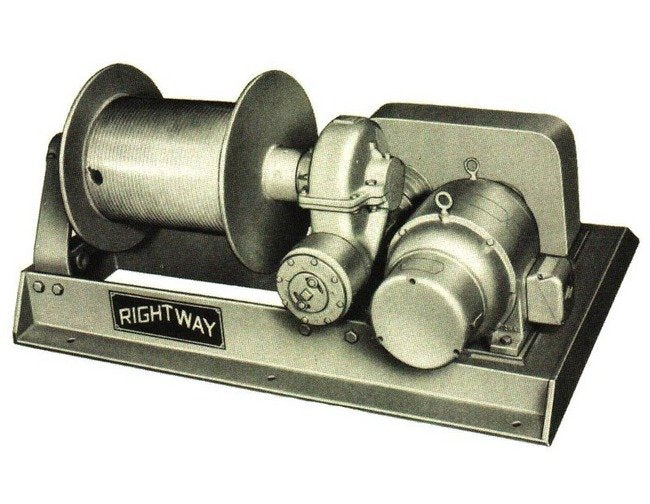

Heavy Duty Model E4 Electric Hoist
Heavy Duty Model E4 Electric Hoist
SKU:RIG-8f5cfd
Powerful and durable Heavy Duty E4 Electric Hoist for efficient high-speed lifting in rugged environments.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Heavy Duty Model E4 Electric Hoist
$2,899.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Model E4 Electric Hoist
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Model E4 Electric Hoist is designed for long lift high speed hoisting applications with a large drum diameter to increase wire rope life. Featuring precision gearing, self-locking reduction, and automatic safety brake, this hoist ensures secure and efficient operations. With a powerful 7 1/2 HP motor and multiple safety features, including regenerative lowering and electrically retarded speed, this hoist is ideal for rugged environments. Compliant with industry standards for structural safety and durability, the Model E4 is a reliable choice for heavy-duty lifting and pulling tasks in both consumer and institutional settings.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
330 ft.
Specifications Drum Diameter
6 3/4 inches
Specifications Electrical Current
230/460-3-60
Specifications Full Drum
925 ft.
Specifications Line Speed
40 FPM
Specifications Motor
7 1/2 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
490 lbs.
Specifications Optional Equipment
Controls to suit application | Grooved drums | Overspeed automatic load holding drum brake and electric shut-off | Electric Motor Brake (recommended for all hoisting applications) | Two or more wire ropes off the drum | Slack Line Limit Switch | Travel Limit Switch | Cable Drum Pressure Roller - assists multiple layer reeving evenly onto drum | Mechanical Torque Limiter - automatic reset
Specifications Running Capacity Lbs
3000
Specifications Standard Wire Rope Diameter
3/8 inches
Specifications Winch Height
17 inches
Specifications Winch Length
49 inches
Specifications Winch Width
20 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Standard Features 0
Ideal for long lift high speed hoisting applications Drum large diameter increases wire rope life Precision gearing self-locking reduction oil bath lubricated Safety brake automatic mechanical load holding type Regenerative lowering electrically retarded lowering speed Totally enclosed motor high torque hoist duty motor starting capacity is minimum two (2) times running All weather use is ideal for rugged model E4 winches minimum 5 to 1structural safety factor
