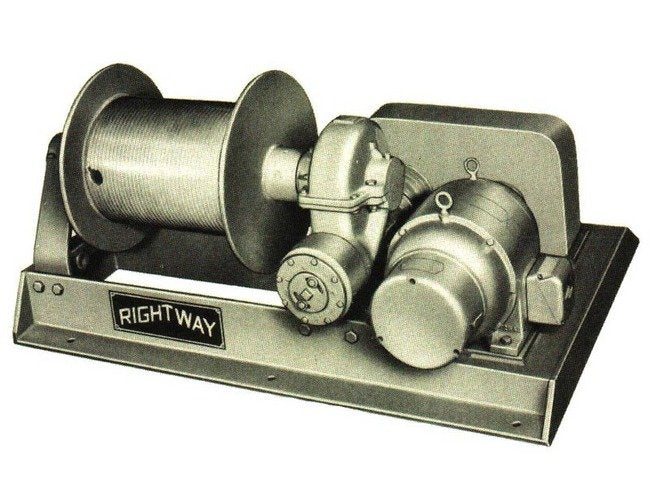

Heavy Duty Model E4 Electric Winch
Heavy Duty Model E4 Electric Winch
SKU:RIG-3a5cc1
High-performance electric winch for rugged hoisting applications, featuring safety brake and regenerative lowering for secure operations.
Regular price
$3,899.99
Regular price
Sale price
$3,899.99
Unit price
per
Initiate Order
Heavy Duty Model E4 Electric Winch
$3,899.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Model E4 Electric Winch
$3,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Model E4 Electric Winch is designed for long lift high speed hoisting applications, featuring a large drum diameter that increases wire rope lifespan. Equipped with precision gearing, a self-locking reduction mechanism, and automatic safety brake for mechanical load holding, this winch ensures secure and efficient operations. The 10 HP motor provides high torque power, with regenerative lowering capabilities for electrically controlled speed. Ideal for all-weather use, this rugged winch meets a minimum 5 to 1 structural safety factor, making it a reliable choice for demanding lifting and pulling tasks.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
290 ft.
Specifications Drum Diameter
6 3/4 inches
Specifications Electrical Current
230/460-3-60
Specifications Full Drum
675 ft.
Specifications Line Speed
40 FPM
Specifications Motor
10 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
560 lbs.
Specifications Optional Equipment
Controls to suit application | Grooved drums | Overspeed automatic load holding drum brake and electric shut-off | Electric Motor Brake (recommended for all hoisting applications) | Two or more wire ropes off the drum | Slack Line Limit Switch | Travel Limit Switch | Cable Drum Pressure Roller - assists multiple layer reeving evenly onto drum | Mechanical Torque Limiter - automatic reset
Specifications Running Capacity Lbs
4000
Specifications Standard Wire Rope Diameter
7/16 inches
Specifications Winch Height
17 inches
Specifications Winch Length
51 inches
Specifications Winch Width
24 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Standard Features 0
Ideal for long lift high speed hoisting applications Drum large diameter increases wire rope life Precision gearing self-locking reduction oil bath lubricated Safety brake automatic mechanical load holding type Regenerative lowering electrically retarded lowering speed Totally enclosed motor high torque hoist duty motor starting capacity is minimum two (2) times running All weather use is ideal for rugged model E4 winches minimum 5 to 1structural safety factor
