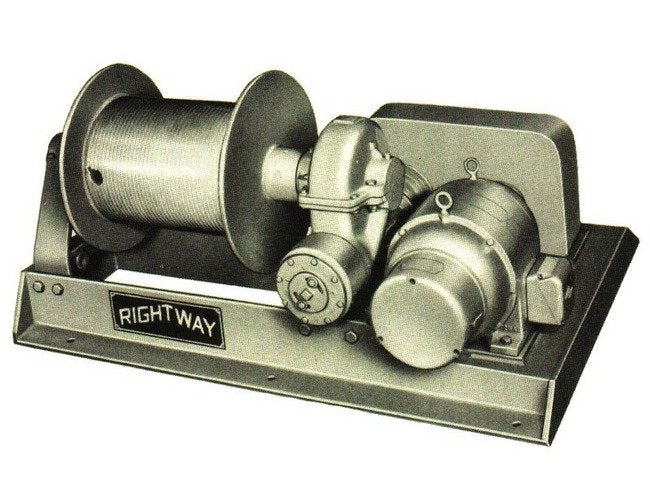

Heavy Duty Model E4 Electric Winch
Heavy Duty Model E4 Electric Winch
SKU:RIG-b44e17
High-speed hoisting with precision gearing, self-locking brake, and regenerative lowering. Built for durability and safety.
Regular price
$2,399.99
Regular price
Sale price
$2,399.99
Unit price
per
Initiate Order
Heavy Duty Model E4 Electric Winch
$2,399.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Model E4 Electric Winch
$2,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Model E4 Heavy Duty Hoist is designed for high-speed hoisting applications, featuring a large drum diameter that extends wire rope lifespan. With precision gearing, a self-locking reduction mechanism, and automatic mechanical load holding safety brake, this hoist ensures secure operations. Equipped with a regenerative lowering system and a high-torque motor, it boasts a starting capacity double its running capacity. Ideal for all-weather use, this rugged winch offers a minimum 5 to 1 structural safety factor, making it a reliable choice for demanding environments.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
280 ft.
Specifications Drum Diameter
4 1/2 inches
Specifications Electrical Current
230/460-3-60
Specifications Full Drum
650 ft.
Specifications Line Speed
45 FPM
Specifications Motor
5 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
405 lbs.
Specifications Optional Equipment
Controls to suit application | Grooved drums | Overspeed automatic load holding drum brake and electric shut-off | Electric Motor Brake (recommended for all hoisting applications) | Two or more wire ropes off the drum | Slack Line Limit Switch | Travel Limit Switch | Cable Drum Pressure Roller - assists multiple layer reeving evenly onto drum | Mechanical Torque Limiter - automatic reset
Specifications Running Capacity Lbs
2000
Specifications Standard Wire Rope Diameter
5/16 inches
Specifications Winch Height
16 inches
Specifications Winch Length
49 inches
Specifications Winch Width
20 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Standard Features 0
Ideal for long lift high speed hoisting applications Drum large diameter increases wire rope life Precision gearing self-locking reduction oil bath lubricated Safety brake automatic mechanical load holding type Regenerative lowering electrically retarded lowering speed Totally enclosed motor high torque hoist duty motor starting capacity is minimum two (2) times running All weather use is ideal for rugged model E4 winches minimum 5 to 1structural safety factor
