Heavy Duty Motor Driven End Truck Kit
Heavy Duty Motor Driven End Truck Kit
SKU:REL-821f5c
Enhance crane performance with precision gears, smooth deceleration, and durable Tru-Tred Wheels in our Heavy Duty Motor Driven End Truck Kit.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
Heavy Duty Motor Driven End Truck Kit
$1,499.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Motor Driven End Truck Kit
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

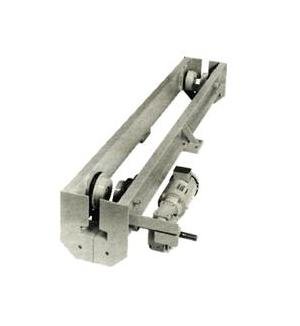

Upgrade your overhead crane with our Heavy Duty Motor Driven End Truck Kit. Featuring precision oil bath lubricated gearing, mechanical braking for smooth operation, split truck design for flexibility, and Tru-Tred Alloy Steel Wheels for durability. Designed to meet OSHA requirements and ensure true running operation, this kit includes precision machine cut steel gears, large diameter drive pinions, and heavy-duty cam follower bearings. Ideal for reliable crane operation in industrial settings.
Product Specifications
Kit Contents 0
Tru-Tred Alloy Steel Wheels Motor Driven Models Heavy Duty sealed tapered tapered roller bearings Precision Machine Cut Steel Gears Large Diameter Drive Pinions
Specifications Model
Model UCS Competitor Series
Specifications Optional Equipment
Controls - Single or two speed | Bumpers - Rubber or spring type | Shorter wheel base | Spark resistant models
Standard Features 0
Drives : Single and dual motor design with precision oil bath lubricated gearing and mechanical braking for smooth deceleration and final stop. Standard "Rightway" 230/460V-3P-60Hz drive motors are connected to precision oil bath lubricated gear reducers. The Mechanical Braking meets all OSHA requirements for crane deceleration and stopping. Gearing : Alloy carbon steel precision machine cut, sized and proportioned with large pitch diameter pinion gears having generous face width for long life and quiet operation. Pinion gears are supported between self-aligning lubricated and sealed ball bearing pillow blocks - no overhung gearing.End Truck Frames : Fabricated from steel channel shapes with heavy axle reinforcement bosses, precision drilled bridge girder connection pads and protective front plates with rail safety lugs all jig assembled to insure accurate wheel alignment for true running operation. Split truck design allows quick easy crane erection on either open end or closed end runway system.Tru-Tred Wheels : Precision machined from alloy steel to meet the most demanding service requirements.Wheel Bearings : Heavy duty long life rated lubricated and sealed Timken tapered roller bearings designed to take the unavoidable shocks of crane duty.Side Rollers : Heavy-duty cam follower bearings provide smooth non-skewing crane operation.
