Heavy Duty Motor Driven End Truck Kit - 5 Ton Capacity
Heavy Duty Motor Driven End Truck Kit - 5 Ton Capacity
SKU:REL-92af13
Heavy Duty Motor Driven End Truck Kit - 5 Ton. Reliable, smooth operation for industrial overhead cranes. Meets OSHA requirements.
Regular price
$2,799.99
Regular price
Sale price
$2,799.99
Unit price
per
Initiate Order
Heavy Duty Motor Driven End Truck Kit - 5 Ton Capacity
$2,799.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Motor Driven End Truck Kit - 5 Ton Capacity
$2,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

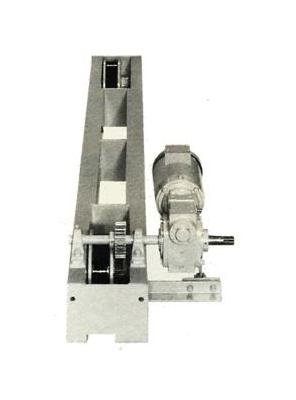

The Heavy Duty Motor Driven End Truck Kit is a top running end truck designed for reliable overhead crane operations. With a 5-ton capacity and precision oil bath lubricated gearing, this kit ensures smooth deceleration and stopping, meeting all OSHA requirements. Its alloy carbon steel precision machine-cut gearing and sturdy frame provide long life and quiet operation. Tru-Tred Wheels and heavy-duty wheel bearings guarantee durability under demanding service requirements, making it a dependable choice for industrial applications.
Product Specifications
Kit Contents 0
Large Diameter Drive Pinions
Specifications Capacity
5 Tons
Specifications Crane Wheel Diameter
8 inches

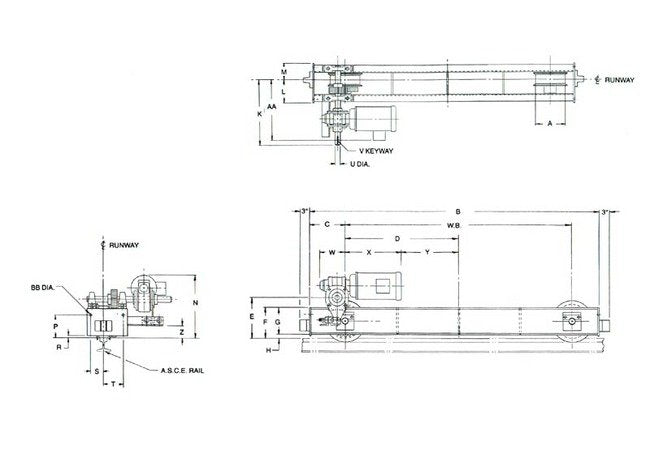

Specifications Dimension A
8 inches
Specifications Dimension Aa
14 7/8 inches
Specifications Dimension B
6'-2"
Specifications Dimension Bb
9/16 inches
Specifications Dimension C
8 inches
Specifications Dimension D
2'-6"
Specifications Dimension E
8 15/16 inches
Specifications Dimension F
6 3/4 inches
Specifications Dimension G
6 inches
Specifications Dimension H
3/4 inches
Specifications Dimension K
16 1/8 inches
Specifications Dimension L
5 3/4 inches
Specifications Dimension M
4 inches
Specifications Dimension N
15 1/4 inches
Specifications Dimension P
5 1/4 inches
Specifications Dimension R
1/2 inches
Specifications Dimension S
3 1/8 inches
Specifications Dimension T
4 7/8 inches
Specifications Dimension U
1 inches
Specifications Dimension V
1/4 x 1/8 inches
Specifications Dimension W
5 inches
Specifications Dimension X
13 3/16 inches
Specifications Dimension Y
16 13/16 inches
Specifications Dimension Z
2 7/8 inches
Specifications Maximum Asce Runway Rail
40#
Specifications Max Wheel Load Per Wheel
7500 lbs.
Specifications Net Weight Per Pair
700 lbs.
Specifications Optional Equipment
Controls - Single or two speed | Bumpers - Rubber or spring type | Shorter wheel base | Spark resistant models
Specifications Wheel Base
5'-0"
Standard Features 0
Drives : Single and dual motor design with precision oil bath lubricated gearing and mechanical braking for smooth deceleration and final stop. Standard "Rightway" 230/460V-3P-60Hz drive motors are connected to precision oil bath lubricated gear reducers. The Mechanical Braking meets all OSHA requirements for crane deceleration and stopping.Gearing : Alloy carbon steel precision machine cut, sized and proportioned with large pitch diameter pinion gears having generous face width for long life and quiet operation. Pinion gears are supported between self-aligning lubricated and sealed ball bearing pillow blocks - no overhung gearing..End Truck Frames : Fabricated from heavy steel channel shapes interconnected with diaphragms and end plates to form a sturdy jig welded box. Heavy steel axle reinforcement bosses are welded to main frame then line bored to insure accurate wheel alignment for Tru-Rolling truck operation. Neoprene rubber bumpers are available as accessory equipment for cushioned contact with runway end stops..Tru-Tred Wheels : Precision machined from alloy steel double flanged to meet the most demanding service requirements..Wheel Bearings : Heavy duty long life rated roller bearings rotating on high carbon alloy steel hardened and ground axles with pressure grease lubrication.
