Heavy Duty Motor Driven End Truck Kit - 5 Tons Capacity
Heavy Duty Motor Driven End Truck Kit - 5 Tons Capacity
SKU:REL-8d2cc4
Upgrade your crane with a 5-ton capacity Motor Driven End Truck Kit featuring precision gearing for smooth operations.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Heavy Duty Motor Driven End Truck Kit - 5 Tons Capacity
$2,899.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Motor Driven End Truck Kit - 5 Tons Capacity
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

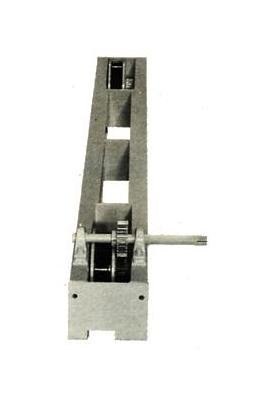

Equip your overhead crane with the Heavy Duty Motor Driven End Truck Kit, boasting a 5-ton capacity and precision oil bath lubricated gearing. This kit features alloy carbon steel precision gearing, sturdy steel channel frame, Tru-Tred wheels, and heavy-duty roller bearings for reliable performance and quiet operation. Compliant with OSHA requirements and suitable for heavy-duty industrial use, this kit ensures smooth deceleration and precise stops.
Product Specifications
Kit Contents 0
Motor Driven Models
Specifications Capacity
5 Tons
Specifications Crane Wheel Diameter
8 inches

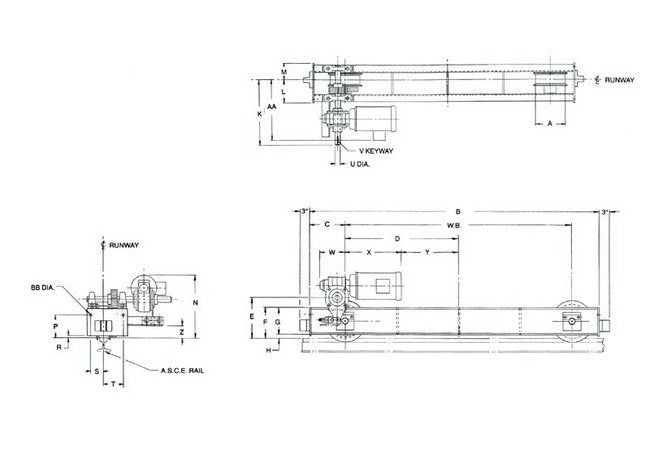

Specifications Dimension A
8 inches
Specifications Dimension B
7'-2"
Specifications Dimension Bb
9/16 inches
Specifications Dimension C
8 inches
Specifications Dimension D
3'-0"
Specifications Dimension E
8 15/16 inches
Specifications Dimension F
6 3/4 inches
Specifications Dimension G
6 inches
Specifications Dimension H
3/4 inches
Specifications Dimension K
12 7/8 inches
Specifications Dimension L
5 3/4 inches
Specifications Dimension M
4 inches
Specifications Dimension N
11 7/16 inches
Specifications Dimension P
5 1/4 inches
Specifications Dimension R
1/2 inches
Specifications Dimension S
3 1/8 inches
Specifications Dimension T
4 7/8 inches
Specifications Dimension U
1 inches
Specifications Dimension V
1/4 x 1/8 inches
Specifications Gear Ratio
1.36:1
Specifications Maximum Asce Runway Rail
40#
Specifications Max Wheel Load Per Wheel
7500 lbs.
Specifications Net Weight Per Pair
700 lbs.
Specifications Optional Equipment
Controls - Single or two speed | Bumpers - Rubber or spring type | Shorter wheel base | Spark resistant models
Specifications Wheel Base
6'-0"
Standard Features 0

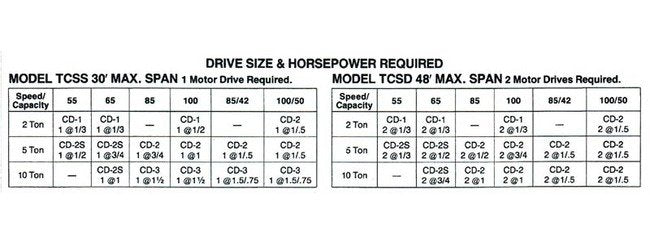

Drives : Single and dual motor design with precision oil bath lubricated gearing and mechanical braking for smooth deceleration and final stop. Standard "Rightway" 230/460V-3P-60Hz drive motors are connected to precision oil bath lubricated gear reducers. The Mechanical Braking meets all OSHA requirements for crane deceleration and stopping.Gearing : Alloy carbon steel precision machine cut, sized and proportioned with large pitch diameter pinion gears having generous face width for long life and quiet operation. Pinion gears are supported between self-aligning lubricated and sealed ball bearing pillow blocks - no overhung gearing..End Truck Frames : Fabricated from heavy steel channel shapes interconnected with diaphragms and end plates to form a sturdy jig welded box. Heavy steel axle reinforcement bosses are welded to main frame then line bored to insure accurate wheel alignment for Tru-Rolling truck operation. Neoprene rubber bumpers are available as accessory equipment for cushioned contact with runway end stops..Tru-Tred Wheels : Precision machined from alloy steel double flanged to meet the most demanding service requirements..Wheel Bearings : Heavy duty long life rated roller bearings rotating on high carbon alloy steel hardened and ground axles with pressure grease lubrication.
