Heavy Duty Motor Driven End Truck Kit for Overhead Cranes
Heavy Duty Motor Driven End Truck Kit for Overhead Cranes
SKU:REL-524666
Enhance crane performance with our durable end truck kit - precise, reliable, and built to last in tough conditions.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Heavy Duty Motor Driven End Truck Kit for Overhead Cranes
$1,899.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Motor Driven End Truck Kit for Overhead Cranes
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

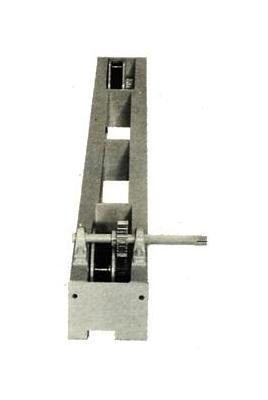

Experience unmatched strength and precision with our Heavy Duty Motor Driven End Truck Kit for Overhead Cranes. Featuring single or dual motor options, precision oil bath lubricated gearing, mechanical braking for seamless stops, and sturdy steel construction, this kit ensures smooth operations and meets OSHA requirements. With alloy steel Tru-Tred wheels and heavy-duty bearings, this kit is built to last for demanding industrial environments.
Product Specifications
Kit Contents 0
Tru-Tred Alloy Steel Wheels
Specifications Capacity
2 Tons
Specifications Crane Wheel Diameter
6 inches

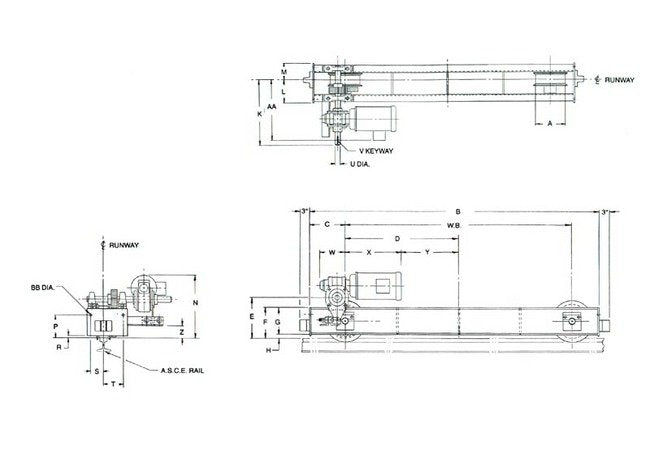

Specifications Dimension A
6 inches
Specifications Dimension B
6'-0"
Specifications Dimension Bb
9/16 inches
Specifications Dimension C
7 inches
Specifications Dimension D
2'-6"
Specifications Dimension E
7 1/16 inches
Specifications Dimension F
5 1/4 inches
Specifications Dimension G
5 inches
Specifications Dimension H
1/4 inches
Specifications Dimension K
10 3/4 inches
Specifications Dimension L
4 3/4 inches
Specifications Dimension M
3 3/4 inches
Specifications Dimension N
8 15/16 inches
Specifications Dimension P
4 inches
Specifications Dimension R
1/4 inches
Specifications Dimension S
3 inches
Specifications Dimension T
4 inches
Specifications Dimension U
1 inches
Specifications Dimension V
1/4 x 1/8 inches
Specifications Gear Ratio
1.78:1
Specifications Maximum Asce Runway Rail
40#
Specifications Max Wheel Load Per Wheel
3500 lbs.
Specifications Net Weight Per Pair
575 lbs.
Specifications Optional Equipment
Controls - Single or two speed | Bumpers - Rubber or spring type | Shorter wheel base | Spark resistant models
Specifications Wheel Base
5'-0"
Standard Features 0
Drives : Single and dual motor design with precision oil bath lubricated gearing and mechanical braking for smooth deceleration and final stop. Standard "Rightway" 230/460V-3P-60Hz drive motors are connected to precision oil bath lubricated gear reducers. The Mechanical Braking meets all OSHA requirements for crane deceleration and stopping.Gearing : Alloy carbon steel precision machine cut, sized and proportioned with large pitch diameter pinion gears having generous face width for long life and quiet operation. Pinion gears are supported between self-aligning lubricated and sealed ball bearing pillow blocks - no overhung gearing..End Truck Frames : Fabricated from heavy steel channel shapes interconnected with diaphragms and end plates to form a sturdy jig welded box. Heavy steel axle reinforcement bosses are welded to main frame then line bored to insure accurate wheel alignment for Tru-Rolling truck operation. Neoprene rubber bumpers are available as accessory equipment for cushioned contact with runway end stops..Tru-Tred Wheels : Precision machined from alloy steel double flanged to meet the most demanding service requirements..Wheel Bearings : Heavy duty long life rated roller bearings rotating on high carbon alloy steel hardened and ground axles with pressure grease lubrication.
