Heavy-Duty Motor-Driven End Truck Kits
Heavy-Duty Motor-Driven End Truck Kits
SKU:REL-e67871
Enhance crane systems with precision-paired motor-driven end truck kits for smooth, reliable operation.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Heavy-Duty Motor-Driven End Truck Kits
$2,499.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Motor-Driven End Truck Kits
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

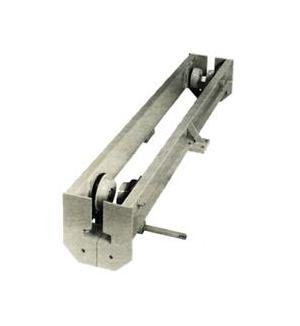

Upgrade your overhead crane system with our Heavy-Duty Motor-Driven End Truck Kits. Featuring single and dual motor designs with precision oil bath lubricated gearing and mechanical braking, these end truck kits ensure smooth deceleration and stopping, meeting OSHA requirements. The alloy carbon steel precision machine cut gearing and Tru-Tred alloy steel wheels with Timken tapered roller bearings offer durability, quiet operation, and reliability. With a 5-ton capacity and heavy-duty construction, these end truck kits provide long-term performance for demanding service requirements.
Product Specifications
Kit Contents 0
Tru-Tred Alloy Steel Wheels Motor Driven Models Heavy Duty sealed tapered tapered roller bearings Precision Machine Cut Steel Gears Large Diameter Drive Pinions
Specifications Capacity
5 Tons
Specifications Crane Wheel Diameter
5 inches
Specifications Max Runway Rail
S18 x 54.7
Specifications Max Wheel Load Per Pair
7000 lbs.
Specifications Min Runway Rail
S10 x 25.4
Specifications Model
Model UCS Competitor Series
Specifications Net Weight Per Pair
400 lbs.
Specifications Optional Equipment
Controls - Single or two speed | Bumpers - Rubber or spring type | Shorter wheel base | Spark resistant models
Specifications Wheel Base
5'-0"
Standard Features 0
Drives : Single and dual motor design with precision oil bath lubricated gearing and mechanical braking for smooth deceleration and final stop. Standard "Rightway" 230/460V-3P-60Hz drive motors are connected to precision oil bath lubricated gear reducers. The Mechanical Braking meets all OSHA requirements for crane deceleration and stopping. Gearing : Alloy carbon steel precision machine cut, sized and proportioned with large pitch diameter pinion gears having generous face width for long life and quiet operation. Pinion gears are supported between self-aligning lubricated and sealed ball bearing pillow blocks - no overhung gearing.End Truck Frames : Fabricated from steel channel shapes with heavy axle reinforcement bosses, precision drilled bridge girder connection pads and protective front plates with rail safety lugs all jig assembled to insure accurate wheel alignment for true running operation. Split truck design allows quick easy crane erection on either open end or closed end runway system.Tru-Tred Wheels : Precision machined from alloy steel to meet the most demanding service requirements.Wheel Bearings : Heavy duty long life rated lubricated and sealed Timken tapered roller bearings designed to take the unavoidable shocks of crane duty.Side Rollers : Heavy-duty cam follower bearings provide smooth non-skewing crane operation.
