Heavy Duty Motor Driven End Truck Kits
Heavy Duty Motor Driven End Truck Kits
SKU:REL-6d2475
Enhance your crane efficiency with our Heavy Duty Motor Driven End Truck Kits featuring precision engineering, OSHA compliance, and durable components.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
Heavy Duty Motor Driven End Truck Kits
$1,499.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Motor Driven End Truck Kits
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

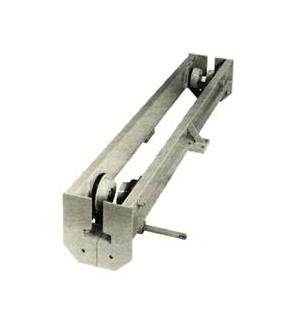

Experience superior crane performance with our Heavy Duty Motor Driven End Truck Kits. Equipped with single or dual motor designs, precision oil bath lubrication, mechanical braking for safe deceleration, and OSHA-compliant features. These kits boast alloy carbon steel gearing, Tru-Tred wheels, Timken tapered roller bearings, and split truck design for easy installation on various runway systems. With a capacity of 2 tons and durable construction, these kits ensure smooth and reliable crane operation in demanding environments.
Product Specifications
Kit Contents 0
Tru-Tred Alloy Steel Wheels Motor Driven Models Heavy Duty sealed tapered tapered roller bearings Precision Machine Cut Steel Gears Large Diameter Drive Pinions
Specifications Capacity
2 Tons
Specifications Crane Wheel Diameter
5 inches
Specifications Max Runway Rail
S15 x 42.9
Specifications Max Wheel Load Per Pair
3400 lbs.
Specifications Min Runway Rail
S8 x 18.4
Specifications Model
Model UCS Competitor Series
Specifications Net Weight Per Pair
325 lbs.
Specifications Optional Equipment
Controls - Single or two speed | Bumpers - Rubber or spring type | Shorter wheel base | Spark resistant models
Specifications Wheel Base
5'-0"
Standard Features 0
Drives : Single and dual motor design with precision oil bath lubricated gearing and mechanical braking for smooth deceleration and final stop. Standard "Rightway" 230/460V-3P-60Hz drive motors are connected to precision oil bath lubricated gear reducers. The Mechanical Braking meets all OSHA requirements for crane deceleration and stopping. Gearing : Alloy carbon steel precision machine cut, sized and proportioned with large pitch diameter pinion gears having generous face width for long life and quiet operation. Pinion gears are supported between self-aligning lubricated and sealed ball bearing pillow blocks - no overhung gearing.End Truck Frames : Fabricated from steel channel shapes with heavy axle reinforcement bosses, precision drilled bridge girder connection pads and protective front plates with rail safety lugs all jig assembled to insure accurate wheel alignment for true running operation. Split truck design allows quick easy crane erection on either open end or closed end runway system.Tru-Tred Wheels : Precision machined from alloy steel to meet the most demanding service requirements.Wheel Bearings : Heavy duty long life rated lubricated and sealed Timken tapered roller bearings designed to take the unavoidable shocks of crane duty.Side Rollers : Heavy-duty cam follower bearings provide smooth non-skewing crane operation.
