Heavy Duty Motor Driven End Truck Kits - 2 to 10 Tons
Heavy Duty Motor Driven End Truck Kits - 2 to 10 Tons
SKU:REL-278004
High-performance motor driven end truck kits for overhead cranes, designed for heavy-duty applications with smooth deceleration and OSHA compliance.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Heavy Duty Motor Driven End Truck Kits - 2 to 10 Tons
$1,899.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Motor Driven End Truck Kits - 2 to 10 Tons
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

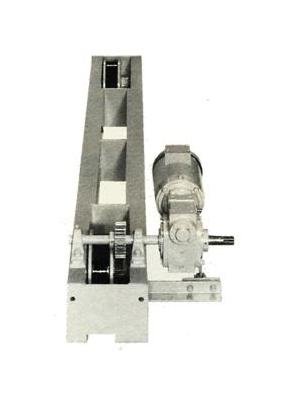

The Heavy Duty Motor Driven End Truck Kits are engineered for reliable overhead crane operations in institutional and industrial settings. With capacities ranging from 2 to 10 tons, these top running end trucks feature single or dual motor designs with precision oil bath lubricated gearing and mechanical braking for smooth deceleration and stopping, meeting all OSHA requirements. The frames are fabricated from heavy steel channel shapes for durability, and the precision machined Tru-Tred wheels ensure optimal performance. Ideal for heavy-duty applications, these kits offer long-term reliability and compliance with industry standards.
Product Specifications
Kit Contents 0
Motor Driven Models
Specifications Capacity
2 Tons
Specifications Crane Wheel Diameter
6 inches

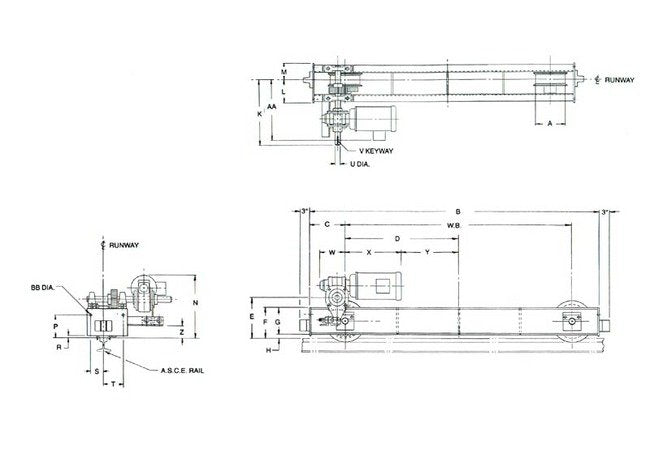

Specifications Dimension A
6 inches
Specifications Dimension Aa
12 7/8 inches
Specifications Dimension B
6'-0"
Specifications Dimension Bb
9/16 inches
Specifications Dimension C
7 inches
Specifications Dimension D
2'-6"
Specifications Dimension E
7 1/16 inches
Specifications Dimension F
5 1/4 inches
Specifications Dimension G
5 inches
Specifications Dimension H
1/4 inches
Specifications Dimension K
14 inches
Specifications Dimension L
4 3/4 inches
Specifications Dimension M
3 3/4 inches
Specifications Dimension N
12 1/8 inches
Specifications Dimension P
4 inches
Specifications Dimension R
1/4 inches
Specifications Dimension S
3 inches
Specifications Dimension T
4 inches
Specifications Dimension U
1 inches
Specifications Dimension V
1/4 x 1/8 inches
Specifications Dimension W
4 inches
Specifications Dimension X
11 1/8 inches
Specifications Dimension Y
18 7/8 inches
Specifications Dimension Z
2 3/16 inches
Specifications Maximum Asce Runway Rail
40#
Specifications Max Wheel Load Per Wheel
3500 lbs.
Specifications Net Weight Per Pair
600 lbs.
Specifications Optional Equipment
Controls - Single or two speed | Bumpers - Rubber or spring type | Shorter wheel base | Spark resistant models
Specifications Wheel Base
5'-0"
Standard Features 0
Drives : Single and dual motor design with precision oil bath lubricated gearing and mechanical braking for smooth deceleration and final stop. Standard "Rightway" 230/460V-3P-60Hz drive motors are connected to precision oil bath lubricated gear reducers. The Mechanical Braking meets all OSHA requirements for crane deceleration and stopping.Gearing : Alloy carbon steel precision machine cut, sized and proportioned with large pitch diameter pinion gears having generous face width for long life and quiet operation. Pinion gears are supported between self-aligning lubricated and sealed ball bearing pillow blocks - no overhung gearing..End Truck Frames : Fabricated from heavy steel channel shapes interconnected with diaphragms and end plates to form a sturdy jig welded box. Heavy steel axle reinforcement bosses are welded to main frame then line bored to insure accurate wheel alignment for Tru-Rolling truck operation. Neoprene rubber bumpers are available as accessory equipment for cushioned contact with runway end stops..Tru-Tred Wheels : Precision machined from alloy steel double flanged to meet the most demanding service requirements..Wheel Bearings : Heavy duty long life rated roller bearings rotating on high carbon alloy steel hardened and ground axles with pressure grease lubrication.
