Heavy-Duty Multi-Flex™ 124 Series Pipe Plug

Name: Heavy-Duty Multi-Flex™ 124 Series Pipe Plug
Brand: Hayward Flow Control
SKU: FIL-60316e
Price: 89.99 USD
Availability: OutOfStock

SKU:FIL-60316e

High-strength and flexible pipe plug for easy installation and efficient pipeline maintenance.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy-Duty Multi-Flex™ 124 Series Plug is a high-strength, flexible solution for pipeline plugging needs. With a maximum pipe diameter of 3 inches and the ability to inflate up to 80 psig, this plug offers exceptional performance in navigating through small openings to large pipelines. It is lightweight, diver-friendly, and customizable for various applications, making it an ideal choice for easy and efficient pipeline maintenance and isolation tasks.

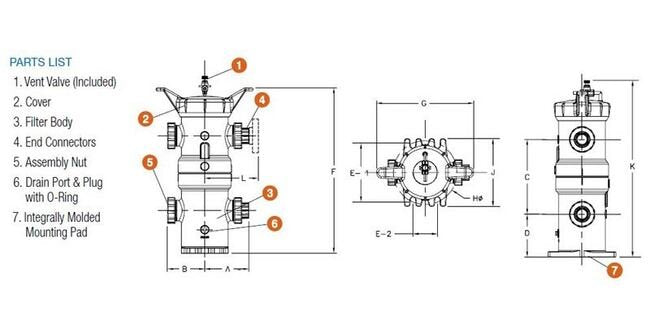

Product Specifications

Specifications A

8.07 in | 205 mm

Specifications B

6.88 in | 175 mm

Specifications Body Material

PVC

Specifications C

13.75 in | 349 mm

Specifications Connection Type

Flanged

Specifications D

7.87 in | 200 mm

Specifications E

21.62 in | 549 mm

Specifications E1

10.86 in | 276 mm

Specifications E2

4.50 in | 114 mm

Specifications F

30.50 in | 775 mm

Specifications G

17.90 in | 455 mm

Specifications H

11.75 in | 298 mm

Specifications J

8.95 in | 227.5 mm

Specifications K

32.00 in | 813 mm

Specifications L

9.66 in | 245 mm

Specifications Seals

FPM

Specifications Size

1-1/2"

Specifications Weight

50 lb | 22.68 kg

Heavy-Duty Multi-Flex™ 124 Series Pipe Plug
