Heavy-Duty Multiple Pulling Harness
Heavy-Duty Multiple Pulling Harness
SKU:PUL-2046d6
Discover unparalleled strength and reliability with our Heavy-Duty Multiple Pulling Harness. Supports heavy loads with ease.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Heavy-Duty Multiple Pulling Harness
$89.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Multiple Pulling Harness
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

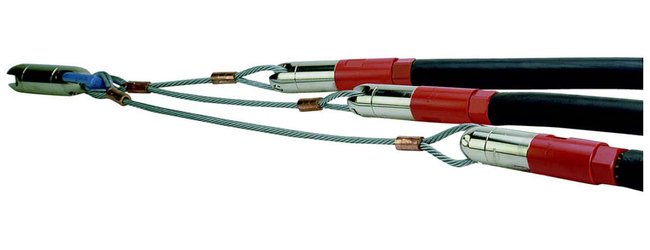

The Heavy-Duty Multiple Pulling Harness is designed for demanding applications, featuring a 2-way 1/2" (13mm) cable that can support a working load of 7000lb per leg and 10000lb combined. With a max width of 2.50" and a lead ring diameter of 0.50", this harness offers exceptional strength and durability. Ideal for heavy-duty pulling tasks, the harness ensures safety and efficiency in industrial and institutional settings.
Product Specifications
Specifications Lead Ring Diameter C In
0.50
Specifications Lead Ring Diameter C Mm
13
Specifications Leg Diameter D In
0.50
Specifications Leg Diameter D Mm
13
Specifications Max Width A In
2.50
Specifications Max Width A Mm
64
Specifications Note
10 & 12 Way 3/8" (10 mm) harnesses only have a single stagger. All other harnesses are sequentially staggered.
Specifications Separation Between Legs B In
12
Specifications Separation Between Legs B Mm
305
Specifications Working Load Combined Lb
10000
Specifications Working Load Combined N
44480
Specifications Working Load Per Leg Lb
7000
Specifications Working Load Per Leg N
31136
