Heavy-Duty Multiple Pulling Harnesses
Heavy-Duty Multiple Pulling Harnesses
SKU:PUL-b763d9
Enhance pulling operations with our Heavy-Duty Multiple Pulling Harnesses. 3-way 1/4" cable, 1400 lb. working load per leg, and 2900 lb. combined load.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Heavy-Duty Multiple Pulling Harnesses
$129.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Multiple Pulling Harnesses
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

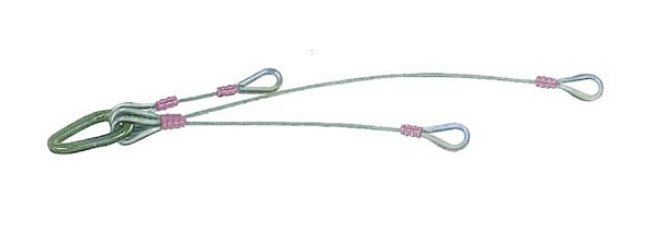

Enhance your pulling operations with our Heavy-Duty Multiple Pulling Harnesses. These harnesses feature a 3-way 1/4" cable design, providing a working load per leg of 1400 lb. (6228 N) and a combined working load of 2900 lb. (12899 N). With a maximum width of 3.00 inches (76 mm) and a lead ring diameter of 0.50 inches (13 mm), our harnesses ensure durability and strength. The separation between legs is 14 inches (356 mm), offering stability during pulling tasks. Sequentially staggered legs ensure efficiency and safety. Perfect for industrial use and built to meet stringent procurement standards.
Product Specifications
Specifications Lead Ring Diameter C In
0.50
Specifications Lead Ring Diameter C Mm
13
Specifications Leg Diameter D In
0.25
Specifications Leg Diameter D Mm
6
Specifications Max Width A In
3.00
Specifications Max Width A Mm
76
Specifications Note
10 & 12 Way 3/8" (10 mm) harnesses only have a single stagger. All other harnesses are sequentially staggered.
Specifications Separation Between Legs B In
14
Specifications Separation Between Legs B Mm
356
Specifications Working Load Combined Lb
2900
Specifications Working Load Combined N
12899
Specifications Working Load Per Leg Lb
1400
Specifications Working Load Per Leg N
6228
