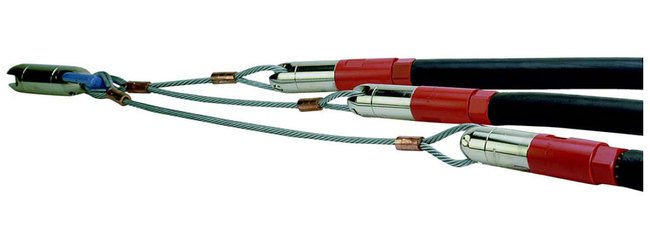

Heavy-Duty Multiple Pulling Harnesses - 3 Way, 3/8" (10mm) Cable
Heavy-Duty Multiple Pulling Harnesses - 3 Way, 3/8" (10mm) Cable
SKU:PUL-25179d
Heavy-Duty 3-Way Pulling Harness with 4800 lbs Working Load per Leg, Ideal for Industrial Applications
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Heavy-Duty Multiple Pulling Harnesses - 3 Way, 3/8" (10mm) Cable
$129.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Multiple Pulling Harnesses - 3 Way, 3/8" (10mm) Cable
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Heavy-Duty Multiple Pulling Harnesses are designed for industrial-grade pulling applications, featuring a 3-way design with a 3/8" (10mm) cable. With a working load capacity of 4800 lbs per leg and 9000 lbs combined, these harnesses are engineered for maximum durability and efficiency. The staggered leg configuration ensures optimal stability and control during pulling tasks. Built with high-quality materials, these harnesses offer superior strength and reliability, making them ideal for heavy-duty projects. Compliant with Federal/DoD procurement standards, these harnesses meet stringent quality requirements for government and institutional applications.
Product Specifications
Specifications Lead Ring Diameter C In
0.62
Specifications Lead Ring Diameter C Mm
16
Specifications Leg Diameter D In
0.37
Specifications Leg Diameter D Mm
10
Specifications Max Width A In
2.63
Specifications Max Width A Mm
67
Specifications Note
10 & 12 Way 3/8" (10 mm) harnesses only have a single stagger. All other harnesses are sequentially staggered.
Specifications Separation Between Legs B In
10
Specifications Separation Between Legs B Mm
254
Specifications Working Load Combined Lb
9000
Specifications Working Load Combined N
40032
Specifications Working Load Per Leg Lb
4800
Specifications Working Load Per Leg N
21350
