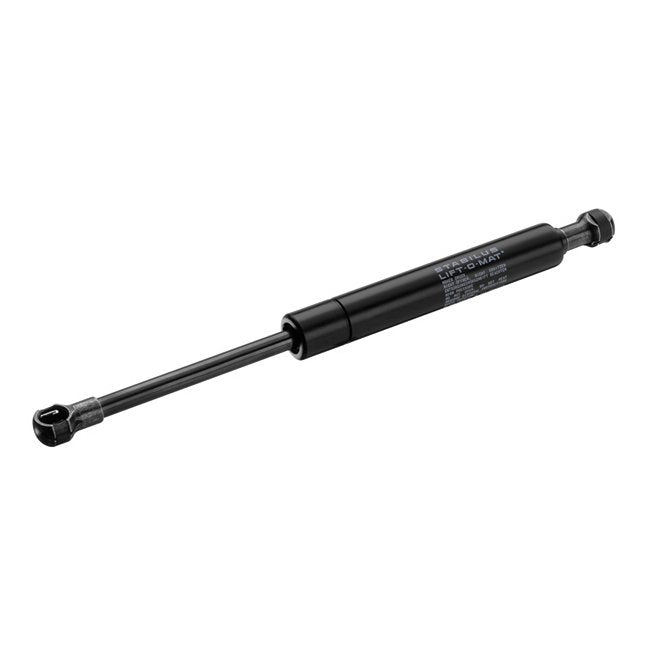

Heavy-Duty Non-Locking Gas Springs
Heavy-Duty Non-Locking Gas Springs
SKU:GAS-c4c776
Upgrade to our Heavy-Duty Non-Locking Gas Springs for precise and controlled motion in lifting, lowering, and adjusting applications. Ideal for doors, lids, and hatches.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Heavy-Duty Non-Locking Gas Springs
$79.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Non-Locking Gas Springs
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade to our Heavy-Duty Non-Locking Gas Springs for precise and controlled motion in lifting, lowering, and adjusting applications. Crafted from durable low carbon steel or stainless steel, these Lift-O-Mats offer a wide range of sizes, forces, and travel lengths. With an output force of 820 Newtons, extended lengths up to 512mm, and a compact compressed length of 312mm, our gas springs feature a black powder coat finish on the tube and NiSlide finish on the rod. The Metal Ball and Socket end fitting ensures secure mounting for a variety of uses, from doors to furniture. Get reliable, cost-effective performance across medical, transportation, and machine construction industries.
Product Specifications
Specifications Alternate Pn
FCN22S
Specifications Compressed Length Mm
312
Specifications Compressed Length Mm Range
301-350
Specifications End Fitting
Metal Ball and Socket (13mm)
Specifications Extended Length Mm
512
Specifications Extended Length Mm Range
501-550
Specifications Notes
Lift-O-Mat gas springs are ideal in applications that require lifting, lowering, moving, supporting, and adjusting. The combination of weight compensation and force support offer the perfect solution for lids, hatches, and doors. | We provide design assistance using our simulation program to help you design the right gas spring for your application. We can offer guidance in all areas, from improvements of existing products to completely new product development. Mounting points and h
Specifications Output Force Newtons
820
Specifications Output Force Newtons Range
801-850
Specifications Product Guides
Gas Spring's Guides
Specifications Rod Diameter Mm
10
Specifications Rod Finish
NiSlide
Specifications Travelstroke Mm
200
Specifications Travelstroke Range
176-200
Specifications Tube Diameter Mm
18
Specifications Tube Finish
Black Powder Coat
