Heavy Duty Oil Mist Filter with 2" NPSC Connections
Heavy Duty Oil Mist Filter with 2" NPSC Connections
SKU:CLE-a13f19
Efficiently capture oil mist with this Heavy Duty Oil Mist Filter. Made of high-quality materials for lasting performance. Ideal for oil-sealed vacuum pumps.
Regular price
$598.50
Regular price
Sale price
$598.50
Unit price
per
Initiate Order
Heavy Duty Oil Mist Filter with 2" NPSC Connections
$598.50
Quantity: 1
Claim Your Seller Account
Heavy Duty Oil Mist Filter with 2" NPSC Connections
$598.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

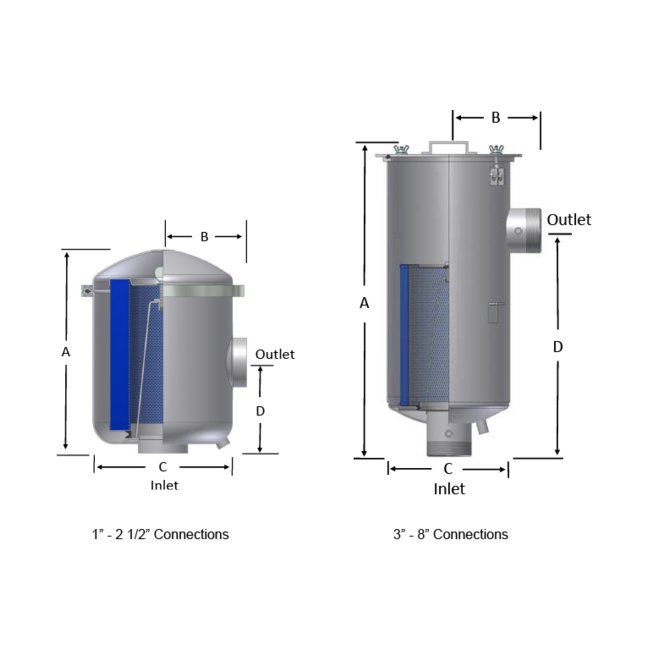

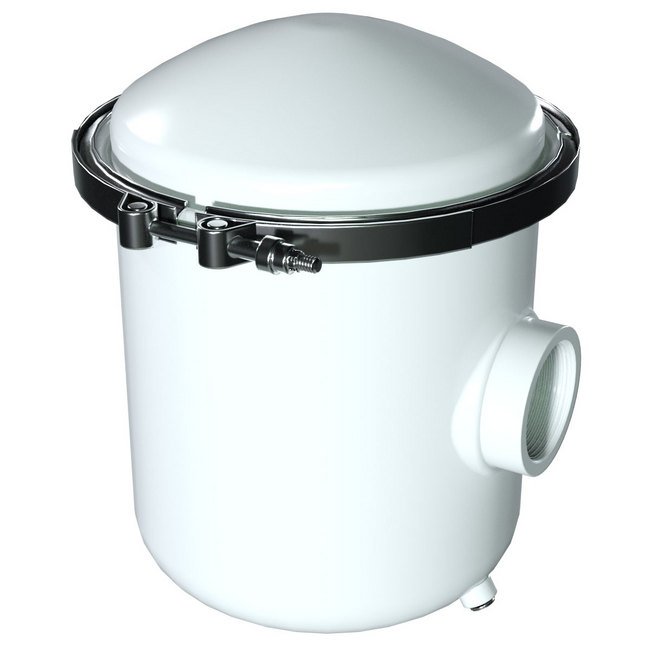

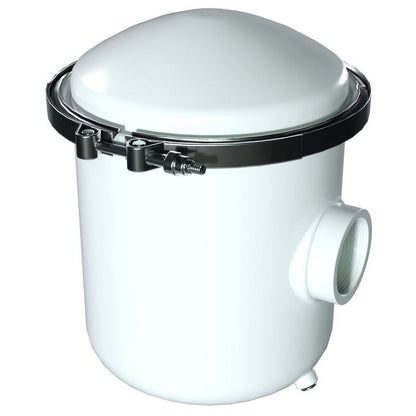

The Heavy Duty Oil Mist Filter is a top-of-the-line solution for capturing oil fog, mist, and aerosols from the exhaust of oil-sealed vacuum pumps. Featuring a pleated filter element for enhanced surface area and low back pressure separation of ultra-fine oil mists, this filter is housed in seamless drawn corrosive-resistant white powder-coated carbon steel with O-ring sealed connections. With a discharge baffle, 1/4" NPSC drain tap, and specific dimensions for easy installation, this filter ensures efficient oil mist separation. Designed for air flow up to 125 scfm, with a micron size of .3 µm, this coalescing filter comes with a replacement element kit (PSG850/1). Invest in this filter for reliable performance and environmentally friendly waste oil recycling.
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Air Flow
125 scfm
Specifications Connection Type
NPSC
Specifications Dimension A
11.25 in
Specifications Dimension B
4.56 in
Specifications Dimension C
7.68 in
Specifications Dimension D
5 in
Specifications Inlet And Outlet Connection Size
2 in
Specifications Media
Coalescing
Specifications Micron Size
.3 µm
Specifications Replacement Element Kit
PSG850/1
Specifications Web Price
598.50 USD
