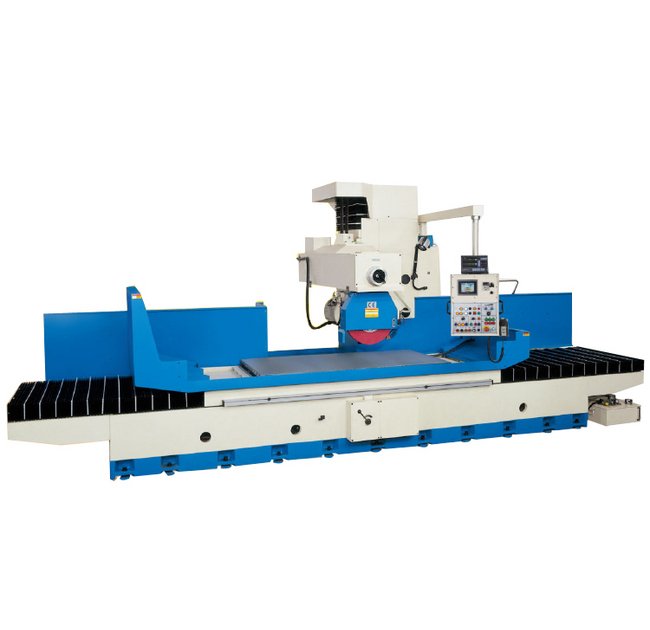

Heavy-Duty Over Arm Surface Grinders
Heavy-Duty Over Arm Surface Grinders
SKU:OVE-44a15e
Achieve precision machining excellence with our Heavy-Duty Surface Grinders. Designed for industrial use, it delivers optimal results on a variety of workpieces.
Regular price
$42,999.00
Regular price
Sale price
$42,999.00
Unit price
per
Initiate Order
Heavy-Duty Over Arm Surface Grinders
$42,999.00
Quantity: 1
Claim Your Seller Account
Heavy-Duty Over Arm Surface Grinders
$42,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled precision and efficiency with our Heavy-Duty Over Arm Surface Grinders. Designed for industrial operations, these grinders feature a robust build and advanced functionalities to meet the exacting demands of institutional buyers. With a massive table clamping surface, precise longitudinal and cross travel, and powerful spindle motor options, it ensures high-quality results on diverse workpieces. Equipped with essential accessories and optional add-ons for greater versatility, our Over Arm Surface Grinders offer unmatched performance and durability, making them ideal for government and institutional procurements.
Product Specifications
Note 0
Manufacturer reserves the right to change or improve specifications without notice.
Optional Accessories 0
Vertical Spindle Grinding EquipmentElectro-Magnetic Chuck (includes Rectifier with Automatic Demagnetizing )Spare Wheel FlangeBalancing StandHalogen Machine LampCoolant System with Paper FilterMagnetic Dust SeparatorDRO 1 Or 2 Axisvariable Speed Spindle
Specifications Approximate Net Weight
38390 lb
Specifications Auto Downfeed Servo Motor
0.0005 to 0.002 in
Specifications Chuck Weight
3170 lb
Specifications Continuous Crossfeed
0.9 to 5 ft/min
Specifications Crossfeed Intermittent
0.004 to 1.57 in/feed
Specifications Crossfeed Per Division
0.0001 in | 0.001 in | 0.005 in
Specifications Down Feed Per Division Mpg
0.0001 in | 0.0005 in | 0.001 in
Specifications Down Feed Per Revolution Mpg
0.01 in | 0.05 in | 0.1 in
Specifications Floor Height
110 in
Specifications Floor Height Optional
118 in
Specifications Floor Length
362 in
Specifications Floor Width
130 in
Specifications Grinding Wheel Inside Diameter
5 in
Specifications Grinding Wheel Inside Diameter Optional
5 in
Specifications Grinding Wheel Outside Diameter
16 in
Specifications Grinding Wheel Outside Diameter Optional
16 in
Specifications Grinding Wheel Width
2 in
Specifications Grinding Wheel Width Optional
3 in
Specifications Hydraulic Pump Motor Power
10 hp
Specifications Longitudinal Table Speed
10 to 105 ft/min
Specifications Manufacturer
Supertec®
Specifications Maximum Cross Travel
41.73 in
Specifications Maximum Distance Between Spindle Center To Table
31.5 in
Specifications Maximum Distance Between Spindle Center To Table
39.4 in
Specifications Maximum Grinding Length
118 in
Specifications Maximum Grinding Width
39.4 in
Specifications Maximum Longitudinal Travel
124 in
Specifications Maximum Workpiece On Chuck
5500 lb
Specifications Spindle Motor Power
15 hp
Specifications Spindle Motor Power Optional
25 hp
Specifications Spindle Speed At 50 Hz
1450 rpm
Specifications Spindle Speed At 60 Hz
1720 rpm
Specifications Table Clamping Surface Length
126 in
Specifications Table Clamping Surface Width
40 in
Specifications Total Motor Power
26.5 hp | 36.5 hp
Standard Accessories 0
Grinding Wheel - 1 Pc.Wheel Flange - 1 setCoolant System - 1 setTools with Box - 1 setBalancing Arbor - 1 Pc.Wheel Extractor - 1 setChiller for Hydraulic Oil - 1 setHydro Static System - 1 set
