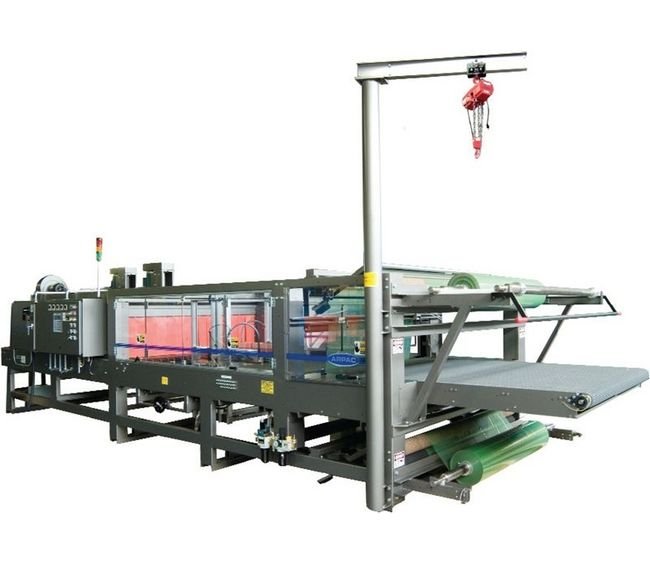

The Heavy-Duty Oversized Shrink Bundler from our 105 SERIES is built for handling large stacks of products with precision and efficiency. This bundler features a robust stainless steel frame, NEMA 4X cabinet standards, and low-density polyethylene film type for enhanced product protection. With a maximum film width of 89", it accommodates various oversized items like pizza boxes, doors, ceiling tiles, and more. The integrated dual-stage shrink tunnel ensures a secure enclosure, while the Allen Bradley® programmable logic controller allows for seamless operation and quick changeovers. Ideal for institutional buyers requiring durable, high-speed packaging solutions.
Product Specifications
Additional Information Additional Information

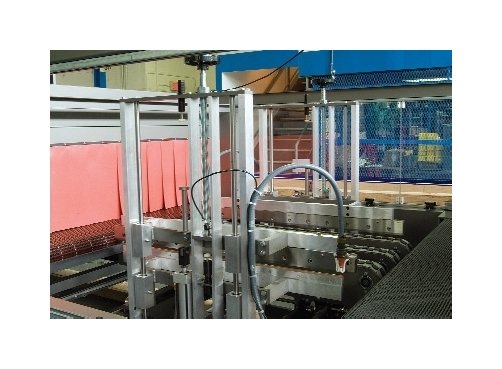

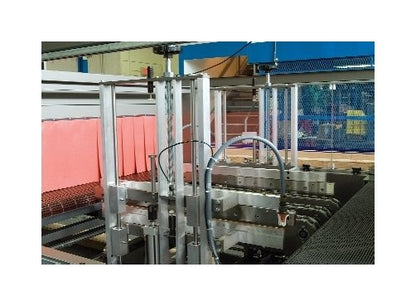

Stacks of product proceed via an infeed conveyor to the seal area where the stack moves through the film web and the seal frame. Once enveloped with shrink film, the stack automatically stops and the seal closes, forming a film sleeve around the stack. Optional side seals (no trim) are then applied. The stack advances through an integrated shrink tunnel chamber. The bundle exits the shrink tunnel, passing under a turbo cooling system which accelerates the curing of the stack.
Electrical Power Requirements Alternating Current Ac Voltage
460 V
Electrical Power Requirements Frequency
60 Hz
Electrical Power Requirements Number Of Phase
3
Features Features

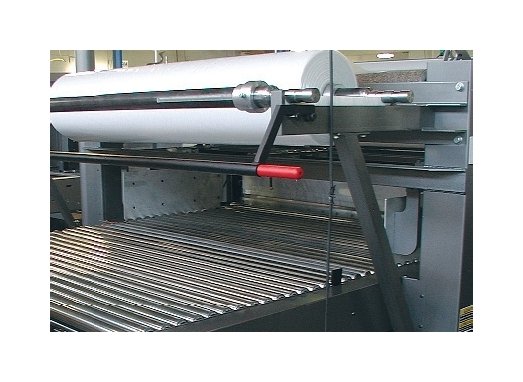

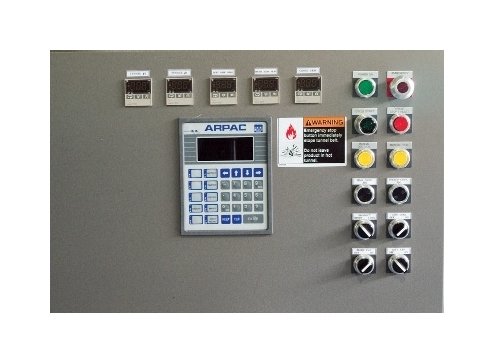

Heavy-duty rugged construction designed for high durability and around-the-clock operationLaser cut and CNC machined components for maximum precisionPowder coat finish that provides a durable scratch resistant surface and prevents corrosionHandles both "bull's eye" and side seal enclosuresOversized to run maximum film width up to 89"Integrated dual stage shrink tunnelTop and bottom film racksQuick and easy changeovers of different product sizesAllen Bradley® programmable logic controller with ARPAC standard operator interfaceDigital controls for fast and accurate setupNEMA 12 electrical cabinet and controlsCentral point lubrication for routine maintenance without stopping productionSide smoothing rollers
Options Options
Product hold down Low tension film feed Side seal no trim Side seal with trim Manual or automatic adjustment for side seal Product centering device System bypass Floor mounted jib crane Stainless Steel NEMA 4X Extended tunnel for higher product up to 15 (will reduce speed)
Specifications Applications
Boxes | Ceiling Tiles | Fluorescent Lighting Fixtures | Paper Products | Pizza Boxes | Shower Doors | Stock Boxes | Windows
Specifications Cabinet Standards
NEMA 4X
Specifications Compressed Air Requirements
80 psi | 15 scfm
Specifications Film Gauge
0 to 3 mil
Specifications Film Roll Diameter
0 to 14 in
Specifications Film Type
Low Density Polyethylene (L.D.P.E.)
Specifications Frame Material
Stainless Steel
Specifications Height
2 to 11 in
Specifications Length Flow Direction
10 to 108 in
Specifications Other Film Specifications
Clear or Randomly Printed | Core of Film Roll - Up to 3 in.
Specifications Speed
From 3 to 20 bundles per minute, depending on product length or height
Specifications Width Across Machine
16 to 72 in
