Heavy Duty Pintle Hook 15-Ton Swivel with Spring Cushion
Heavy Duty Pintle Hook 15-Ton Swivel with Spring Cushion
SKU:TOW-2011c5
Heavy Duty 15-Ton Pintle Hook for rugged towing applications, with swivel design and spring cushion.
Regular price
$391.50
Regular price
Sale price
$391.50
Unit price
per
Initiate Order
Heavy Duty Pintle Hook 15-Ton Swivel with Spring Cushion
$391.50
Quantity: 1
Claim Your Seller Account
Heavy Duty Pintle Hook 15-Ton Swivel with Spring Cushion
$391.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

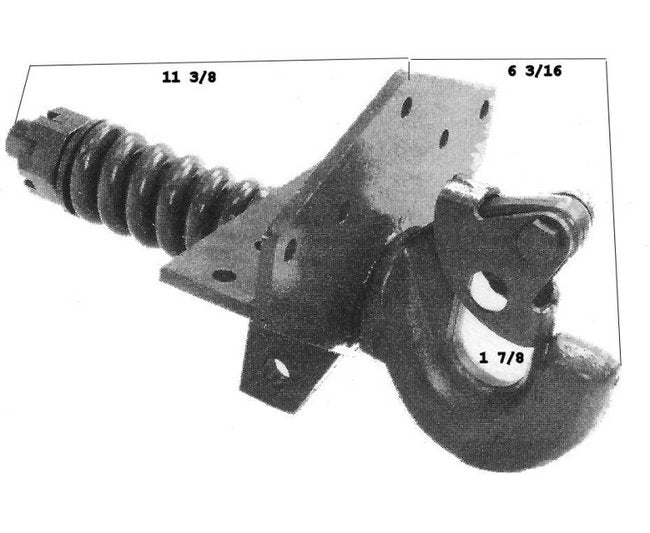

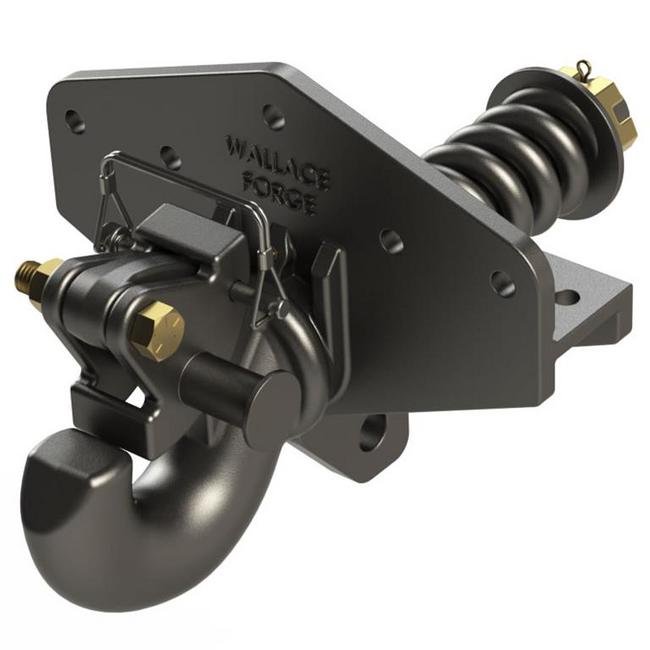

The Heavy Duty Pintle Hook 15-Ton Swivel-Type with Spring Cushion is designed for rugged towing applications. It accommodates drawbar eye dimensions ranging from 2-3/8" to 3" with a diameter of 1-1/4" to 1-5/8". This heavy-duty pintle hook must be mounted on a plate of at least 3/4" thick without welding. Noteworthy are the differences in forged latch assemblies between the 15 and 25-ton variants, ensuring optimal performance in demanding towing scenarios.
Product Specifications
Specifications A
6 3/16 Inch
Specifications B
11 3/8 Inch
Specifications C
1 7/8 Inch
Specifications List Price
391.50 USD
Specifications Max Gross Trailer Weight
30000 lb
Specifications Max Vertical Load
6000 lb
