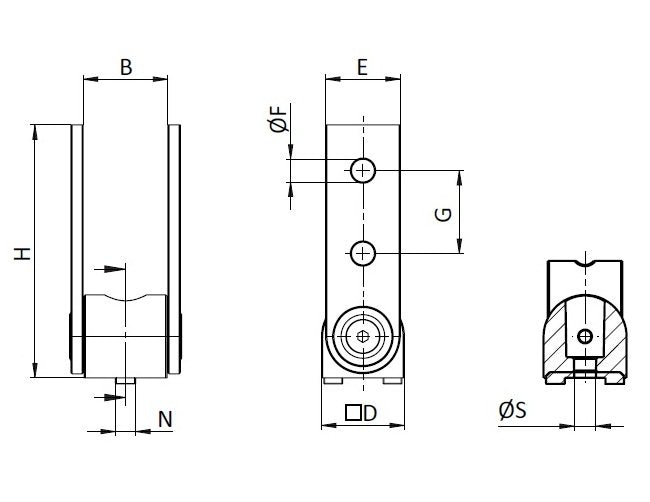

The Heavy-Duty Pivot Joint 1 Slot is a robust and reliable hardware component designed for industrial enclosures. With a locking force ranging from 5 to 6 N, this pivot joint ensures secure closure and easy access. Weighing just 32g, it boasts dimensions of 20.4mm (B) x 61mm (H) x 202mm (D1), suitable for enclosures with a profile of 20mm. Its precise engineering includes features like an 18mm (E) slot for seamless installation, 5.2mm (ØF) holes for fastening, and a 20mm (G) pivot radius. Rest assured of safety with our product, adhering to Prop 65 Warning regulations. Upgrade your enclosures with this versatile and compliant pivot joint today.
Product Specifications
Specifications B Mm
20.4 mm
Specifications D1 Mm
202 mm
Specifications E Mm
18 mm
Specifications F Mm
5.2 mm
Specifications G Mm
20 mm
Specifications H Mm
61 mm
Specifications Locking Force N
5 / 6 N
Specifications Profile
20
Specifications S Mm
5.2 mm
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight G
32 g
