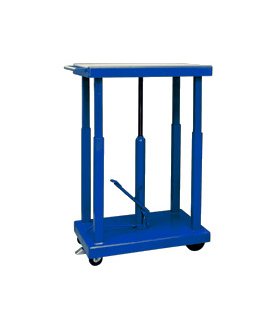

Heavy-Duty Post Lift Tables with Versatile Options
Heavy-Duty Post Lift Tables with Versatile Options
SKU:POS-3d03ac
Enhance material handling with Heavy-Duty Post Lift Tables - versatile, safe, and efficient for all your lifting needs.
Regular price
$1,999.99
Regular price
Sale price
$1,999.99
Unit price
per
Initiate Order
Heavy-Duty Post Lift Tables with Versatile Options
$1,999.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Post Lift Tables with Versatile Options
$1,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your material handling efficiency with our Heavy-Duty Post Lift Tables. With lifting capacities ranging from 500 to 6,000 lbs and raised heights up to 60 inches, these tables are perfect for multi-purpose shop work. The positive action floor lock ensures easy maneuverability, while the optional air motor guarantees safe operation in hazardous environments. Featuring safety skirts, automatic height gauge, and self-propelled drive options, these tables are designed to meet the highest industry standards for efficiency, safety, and performance.
Product Specifications
Lift Table Options Automatic Height Gauge
(Model AHG-I). Keeps table at constant, predetermined level. When sheet or other material is removed, the table raises; when material is added, table lowers. Operates by electric eye sensor for accurate gauge adjustments from 8 to 56 in. Automatic adjustment up or down. Selector switch used to select up or down movement.
Lift Table Options Auto Cycle Package
Automatic cycle package is available for one-touch operation. Package includes adjustable limit switches to set travel and controls with E-stop.
Lift Table Options Coatings
Zinc metalizing, Steel-It paint, epoxy paint and similar coatings are available for an extra charge.
Lift Table Options Conveyor Table Top
Ideal in situations where transferring loads across the table is required.
Lift Table Options Custom Designing
ATI offers a broad line of 2,000 products to address most needs however we recognize that occasionally your needs may be very unique. In those instances, our engineers can design equipment that will solve your specific material handling requirement.
Lift Table Options Custom Painting
All units come with industrial enamel gloss paint in ATI's standard yellow or green. Custom requests accepted for additional setup fee and cost of paint.
Lift Table Options Double Acting Power System
(Models ATI-D/A-2, 3, 4, 6, & 8 number of cycles) - All tables are equipped with a single acting power system which powers up the system and uses gravity feed down. A Double acting power system is perfect when precise control over downward speed is required as in conveyor and material transfer applications. Lift cylinders are powered down to achieve at least equivalent speed of upward cycle.
Lift Table Options Extra Heavy Duty Cycle Package
(Model EHDCP) - For continuous duty applications where a unit is used more than 24 cycles per 8-hour shift, an extra heavy duty cycle package is recommended. Lifetime composite bushings at pivot points of scissors, the use of cam followers, and grease fittings on the cylinder and key pivot points all work together to accommodate continuous duty applications. Like the heavy duty cycle package, the shaft on the rollers can be easily replaced when worn out to ensure years of trouble free operation.
Lift Table Options Heavy Duty Cycle Package
(Model HDCP) - For high-frequency applications where a unit is used more than 16 cycles per 8-hour shift, a heavy duty cycle package is recommended. Self-lubricating composite bushings at pivot points of scissors, rollers secured with fiber bushings and grease fittings on the cylinder all work together to extend the life of the table. Further, the shaft on the rollers can be easily replaced when worn out to ensure years of trouble free operation.
Lift Table Options Hydraulic Power Options
Standard electric motor furnished is 1 hp., 110 volt A/C. Optional motors are 230 volt A/C, single phase; 230/460 volt A/C, 3-phase; all with 110 volt A/C controls. Larger motors-2, 3, 5, 7, and 10 hp.-are available on larger tables for increased lift speed. Higher horsepower motors may have to be external to table.Optional Air Motor - Available on all ATI tables and maintenance lifts, the optional air motor can be plugged into any standard compressed air line. It is quiet, highly efficient, and meets safety requirements for operation in hazardous atmospheres where non-sparking equipment must be used.Washdown Motor - Designed for extended life in applications requiring regular washdown, such as food processing or other wet, high-humidity environments. Extra protection for the motor's interior using Rust-Oleum® coatings prevents rust and corrosion build-up.
Lift Table Options Limit Switches Proximity Sensors
Perfect when a precise lifting height is required repeatedly, our limit switch is compact, reliable and accurate.
Lift Table Options Powered Table Controls
On tables equipped with electric power, there are three control options: (A) Free-standing pedestal control; (B) Foot-operated remote control; and (C) Push button remote control.
Lift Table Options Rotating Table Top
Best suited for material redirection operations such as conveyor systems and transfer applications. Available in manual or hydraulic powered 360º rotation for automatic system operation.
Lift Table Options Safety Skirts
Safety skirts are designed to shield the operator of a table from the lifting and tilting mechanisms. In addition, the safety skirts extend the service life of machines by shielding the internal mechanisms from operational debris. Skirts are manufactured from tough, extra heavy duty, 23- ounce vinyl coated polyester that will expand and compress with the movement of the machine regardless of vertical, horizontal or angular change in position. Skirts are mounted either inside or outside of table top using hook & loop adhesive for ease of maintenance and access to unit.
Lift Table Options Self Propelled Drives
When maximum mobility and versatility is required, a self-propelled drive unit can be coupled with any lift table. The battery powered self-propelled drive is equipped with variable speeds up to 4 mph and has 180º steering capability, 90º to each side offering remarkable maneuver ability in crowded areas. It is equipped with a two-position, spring loaded mechanical brake and a safety belly-button switch. The horn and lifting function controls are built into the steering handle for convenient operation.
Lift Table Options Toe Guard
This flexible polyurethane toe guard lip adds safety to any zero-low style table. The lip protrudes beyond the lifting platform to guard against the platform lowering on a worker's foot.
Lift Table Options Wheel Options
Wheels are available on all ATI tables. Standard wheels are phenolic or polyurethane and are mounted outside the table base. A pivoting handle and dual swivel rear wheels are used for steering. Adding wheels increases lowered and raised table heights by 1 in. Wheels can also be mounted underneath the table base which raises table height by 8 in. Solid rubber wheels are available for outdoor use or where floors require extra protection.
Note Note
Due to space limitations, these models require external (remote) power packs. Upgrades may also require remote power packs.
Specifications Capacity
1000 lb
Specifications Lowered Height
31 in
Specifications Motor Type
Air
Specifications No Of Post
2
Specifications Raised Height
49
Specifications Table Size
20 x 48 in
Specifications Vertical Travel
18 in
